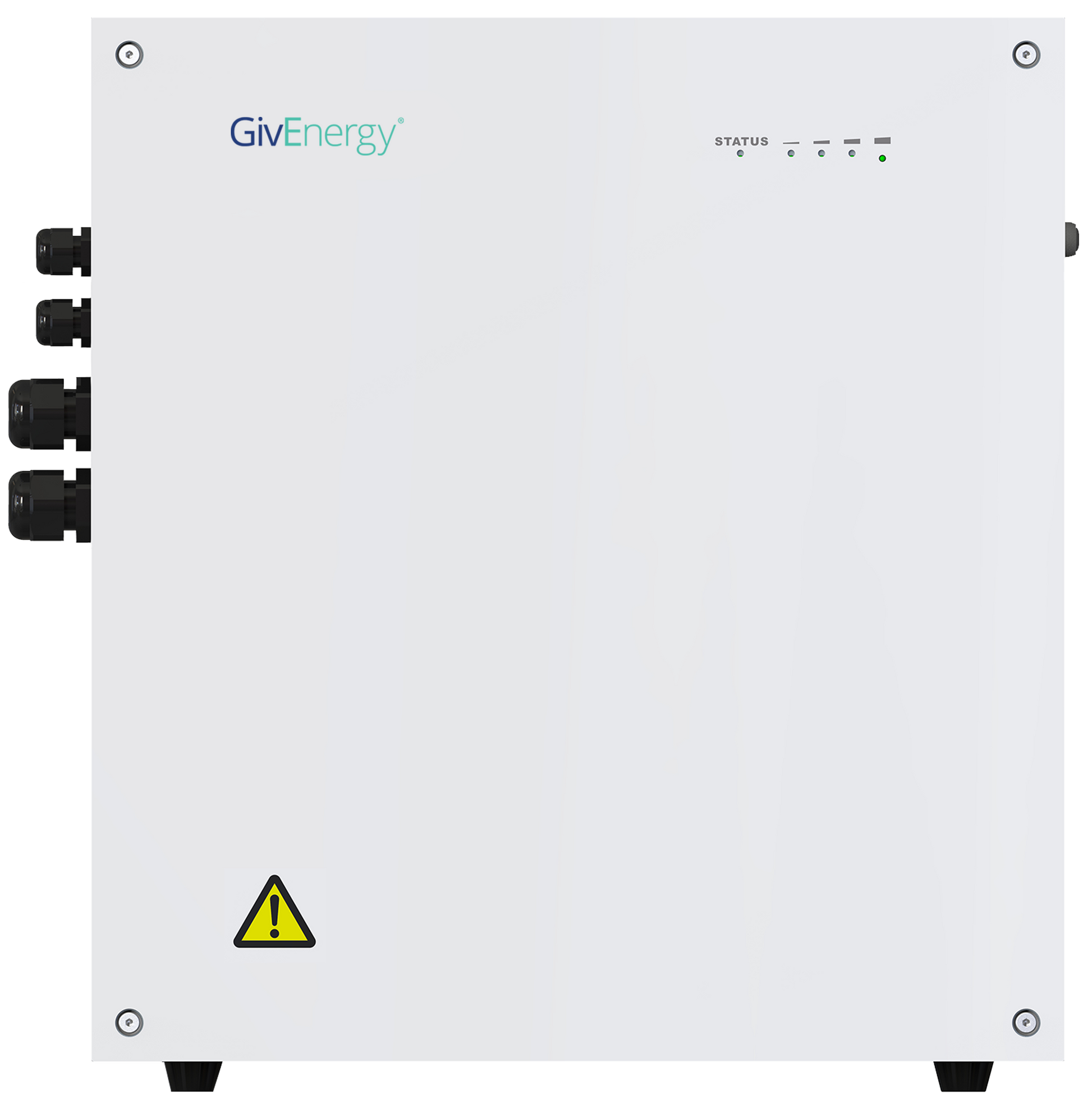

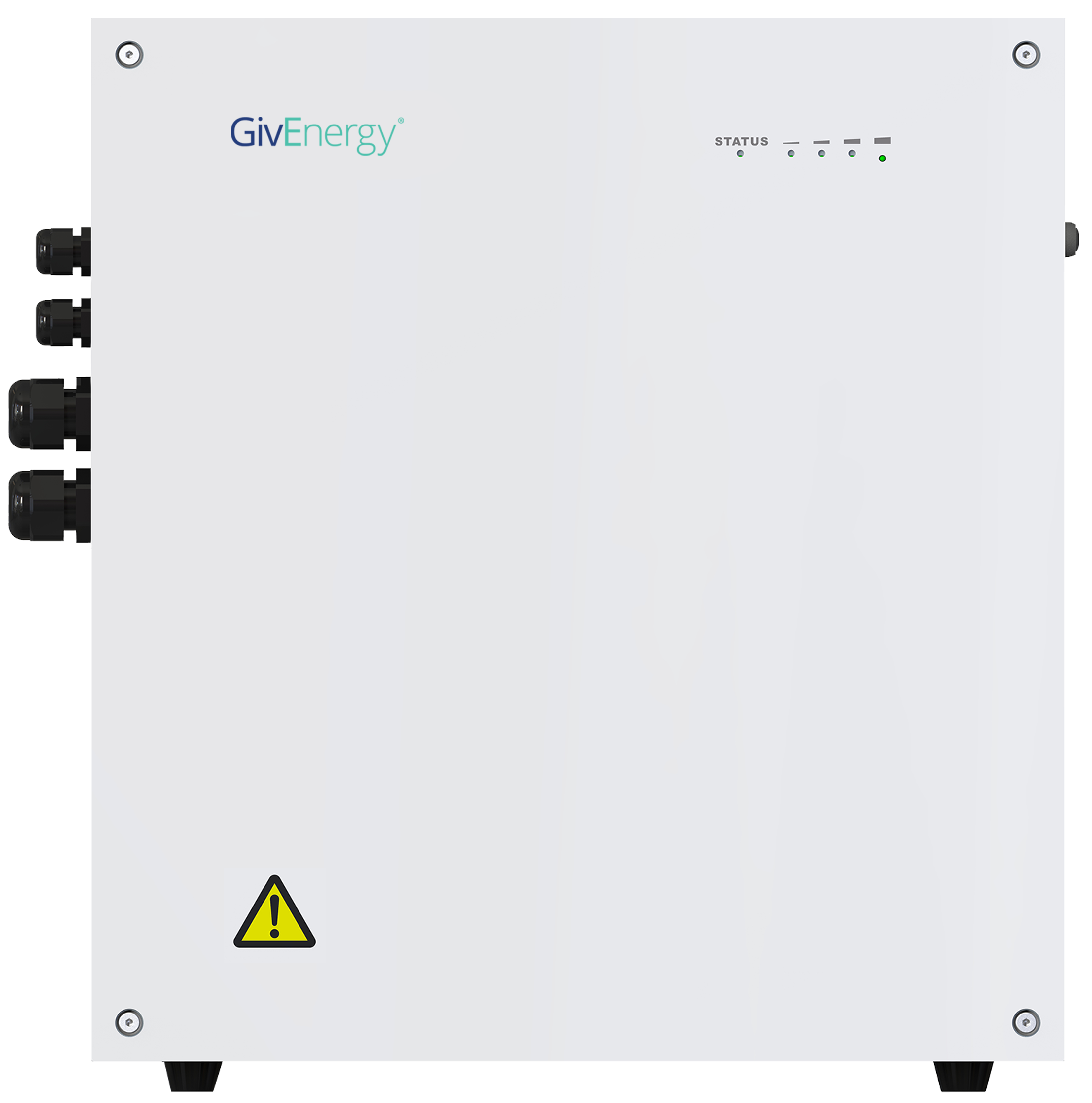

GivEnergy 5.2 kWh Eco Li-Ion Battery
State-Of-The-Art Management System
PLEASE NOTE: The current model of this battery has a Depth of Discharge of 80%
The LiFePO4 chemistry is the safest cell technology on the market, whilst GivEnergy offer higher capacity cells, higher density cells and monitor individual cell voltage rather than overall pack voltage. The batteries also utilize prismatic cells rather than conventional soft pouch cells which minimize heat build-up and thermal hotspots.
Features:
- Using the latest LiFePO4 prismatic cell technology
- Plug & Play functionality
- Fully Recyclable at end of life
Technical:
- Dual BMS system allowing greater control and functionality
- Scalable Battery Packs - Up to 5 per inverter in 2019
- 0.5C-1C charge and discharge rate
- 157Wh per Kg +/- 5%
- Supplier Part No:
- GIV-BAT5.2
- Weight:
- 54 kg
- Battery Type:
- Lithium Ion
- Nominal Energy:
- 5200 Wh
- Depth of discharge:
- 80.00 %
- Voltage:
- 51 V
- Continuous Discharge Rate (Normal Use):
- 2560 W
- Maximum Discharge Rate (5 Minutes):
- 2560 W
- Surge Discharge Rate (15 Seconds):
- 2560 W
- Maximum Charge Rate (5 Minutes):
- 2560 W
