Firefighter Safety Switches

Part No: PEFS-EL50H-20-P2 Switches - Firefighter Safety String-Level Rapid Shutdown Device With 6~10 Strings Ensure the safety and reliability of your photovoltaic installations with the PEFS Rapid Shutdown. Specially designed as a critical safety device, this cutting-edge solution offers peace of mind in emergency situations. In the event of an emergency, such as a fire outbreak, the DC disconnect switch becomes your first line of defense. This switch is strategically engineered to swiftly disconnect connected strings of the installation, mitigating potential hazards and containing risks. Key Features: Enhanced safety for DC photovoltaic installations Swift disconnection of connected strings during emergencies Robust enclosure built to withstand dust and moisture (IP66) Automatic switch-off during AC power interruptions exceeding five seconds Automatic switch-on upon AC power restoration longer than five seconds 5 Years Warranty   Supplier Part No: PEFS-EL50H-20-P2 Weight: 4 kg Poles: 20 Max Cable: 10 mm2 Max Voltage: 1,500 V Rated Current: 50 A Rated Voltage: 1000 V Rated Current: 40 A Rated Voltage: 1200 V Rated Current: 30 A Rated Voltage: 1500 V

Read more less

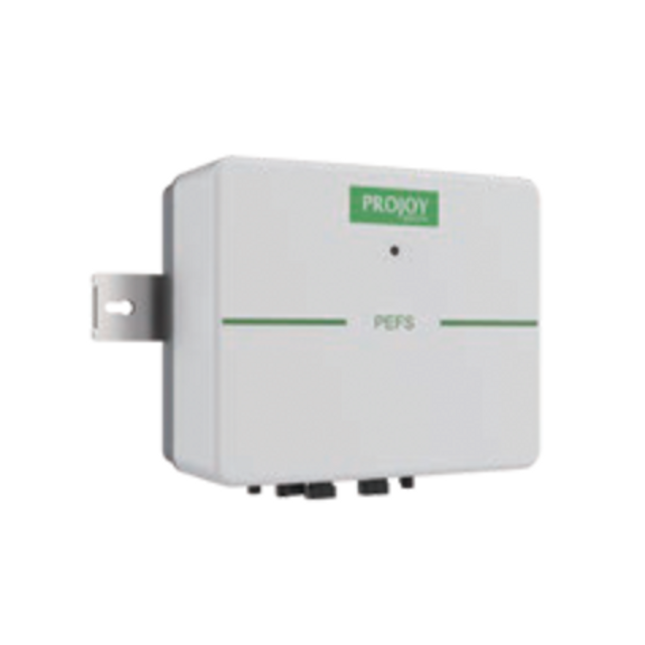

Part No: PEFS-EL40-04-P2 Switches - Firefighter Safety String-Level Rapid Shutdown Device With 1~2 Strings Ensure the safety and reliability of your photovoltaic installations with the PEFS Rapid Shutdown. Specially designed as a critical safety device, this cutting-edge solution offers peace of mind in emergency situations. In the event of an emergency, such as a fire outbreak, the DC disconnect switch becomes your first line of defense. This switch is strategically engineered to swiftly disconnect connected strings of the installation, mitigating potential hazards and containing risks. Key Features: Enhanced safety for DC photovoltaic installations Swift disconnection of connected strings during emergencies Robust enclosure built to withstand dust and moisture (IP66) Automatic switch-off during AC power interruptions exceeding five seconds Automatic switch-on upon AC power restoration longer than five seconds   5 Years Warranty   Supplier Part No: PEFS-EL40-04-P2 Weight: 0.3 kg Poles: 4 Max Cable: 10 mm2 Max Voltage: 1,500 V Rated Current: 40 A Rated Voltage: 600 V Rated Current: 35 A Rated Voltage: 700 V Rated Current: 30 A Rated Voltage: 800 V Rated Current: 25 A Rated Voltage: 900 V Rated Current: 20 A Rated Voltage: 1000 V

Read more less

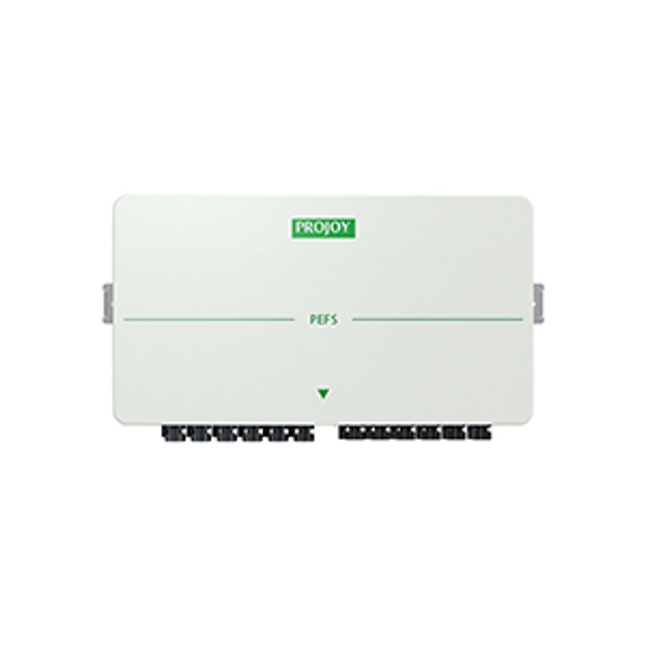

Part No: PEFS-EL40H-10-P2 Switches - Firefighter Safety String-Level Rapid Shutdown Device With 3~5 Strings Ensure the safety and reliability of your photovoltaic installations with the PEFS Rapid Shutdown. Specially designed as a critical safety device, this cutting-edge solution offers peace of mind in emergency situations. In the event of an emergency, such as a fire outbreak, the DC disconnect switch becomes your first line of defense. This switch is strategically engineered to swiftly disconnect connected strings of the installation, mitigating potential hazards and containing risks. Key Features: Enhanced safety for DC photovoltaic installations Swift disconnection of connected strings during emergencies Robust enclosure built to withstand dust and moisture (IP66) Automatic switch-off during AC power interruptions exceeding five seconds Automatic switch-on upon AC power restoration longer than five seconds   5 Years Warranty   Supplier Part No: PEFS-EL40H-10-P2 Weight: 4 kg Poles: 10 Max Cable: 10 mm2 Max Voltage: 1,500 V Rated Current: 40 A Rated Voltage:  1000 V Rated Current: 30 A Rated Voltage: 1200 V Rated Current: 20 A Rated Voltage: 1500 V

Read more less

Part No: PEFS-EL16-04-P2 Switches - Firefighter Safety PEFS PV String Level Firefighter Safety Switches/Rapid Shutdown PEFS-EL Series firefighter safety switch is applied to residential PV systems or industrial and commercial PV system, its maximum loop voltage can be up to 1500V which meets the requirements of a high-power panel. When in an emergency situation, it can quickly cut off the high voltage between the PV Modules and the solar inverter, ensuring the safety of your Photovoltaic system. Use for1-2 strings, 1500V and 55A IP66 Rating, Outdoor installation More reliable and safer with power line control Fire retardant V-0 / UV resistant materials used High-quality material used, temperature & corrosion impact resistance Clasp design, simple and convenient installation, saving labour cost Smart working status indicator, dry contact access support Fully certified, TUV, CE, CB, SAA   Supplier Part No:PEFS-EL16-04-P2 Weight:0.3 kg Poles:2 Max Cable:0 mm2 Max Voltage:1,500 V Rated Current:16 A Rated Voltage:600 V Rated Current:16 A Rated Voltage:500 V Rated Current:16 A Rated Voltage:700 V Rated Current:16 A Rated Voltage:800 V Rated Current:13 A Rated Voltage:900 V Rated Current:9 A Rated Voltage:1000 V Rated Current:6 A Rated Voltage:1200 V Rated Current:3 A Rated Voltage:1500 V

Read more less
