Current Range of Inverters
Inverters
Enphase IQ8HC 54 and 72 cell Microinverter 384 VA peak power MC4
Part No: EN-IQ8HC-72-M-INT Inverters - Micro Inverter Units Rating: 384W Phases: 1 Supplier Code: IQ8HC-72-M-INT Phases: 1 oder 3 (depending on wiring) MPP Tracker: 1 Inputs per Tracker: 1 Rated AC power: 384 VA MPPT Voltage Range: 29.5 - 45 V Warranty: 25 Years Technical Specification Input current: 14 A Short-circuit current: 25 A Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled Supplier Part No: IQ8HC-72-M-INT Weight: 1.1 kg Rated Power: 384 W Min PPT Voltage: 18 V Max PPT Voltage: 60 V DC Startup Voltage: 22 V DC Shutdown Voltage: 18 V Max Input Voltage: 60 V Max DC Power: 560 W Max AC Power (5 Minutes): 366 W Surge AC Power (1 Second): 366 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 97 % Transformer: HF MPPT Quantity: 1 Has Integrated DC Switch: No Warranty: 25 years
£138.10
Enphase 3 Phase IQ8AC 54 to 72 cell Microinverter 366 VA peak power MC4
Part No: EN-IQ8AC-72-M-INT-3PH Inverters - Micro Inverter Units Rating: 366W Phases: 3 Supplier Code: IQ8AC-72-M-INT-3PH Phases: 1 oder 3 (depending on wiring) MPP Tracker: 1 Inputs per Tracker: 1 Rated AC power: 366 VA MPPT Voltage Range: 28 - 45 V Warranty: 25 Years Technical Specification Input current: 14 A Short-circuit current: 25 A Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled Weight: 1.1 kg Rated Power: 366 W Min PPT Voltage: 18 V Max PPT Voltage: 60 V DC Startup Voltage: 22 V DC Shutdown Voltage: 18 V Max Input Voltage: 60 V Max DC Power: 530 W Max AC Power (5 Minutes): 360 W Surge AC Power (1 Second): 366 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 96.6 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years
£131.40

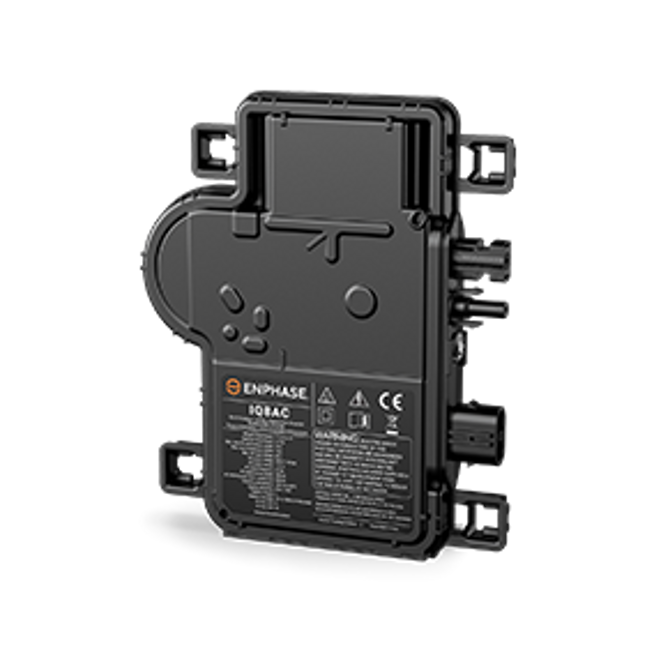

Enphase IQ8AC 54 to 72 cell Microinverter 366 VA peak power MC4
Part No: EN-IQ8AC-72-M-INT Inverters - Micro Inverter Units Rating: 366W Phases: 1 Supplier Code: IQ8AC-72-M-INT Phases: 1 oder 3 (depending on wiring) MPP Tracker: 1 Inputs per Tracker: 1 Rated AC power: 366 VA MPPT Voltage Range: 28 - 45 V Warranty: 25 Years Technical Specification Input current: 14 A Short-circuit current: 25 A Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled Supplier Part No: EN-IQ8AC-72-M-INT Weight: 1.1 kg Rated Power: 366 W Min PPT Voltage: 18 V Max PPT Voltage: 60 V DC Startup Voltage: 22 V DC Shutdown Voltage: 18 V Max Input Voltage: 60 V Max DC Power: 530 W Max AC Power (5 Minutes): 366 W Surge AC Power (1 Second): 366 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 97 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years
£131.40
Enphase 3Phase IQ7 Plus 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC
Part No: EN-IQ7PLUS-72-M-INT-3PH Inverters - Micro Inverter Units Rating: 440W Phases: 3 PRODUCT FEATURES High performance version of the seventh-generation IQ platform Smart-Grid ready Easily integrated with the Gateway-S™ and Enphase™ monitoring and analysis software Easy to install thanks to lightweight design and improved two-wire cabling Double insulated housing, protection class II Modular design allows simple expansion of system as required Ultra reliable – system keeps working even if a single panel/microinverter fails or panel slips into shade Mobile app allows enhanced control and monitoring possibilities PRODUCT SPECIFICATION Commonly used module pairings: 295W - 460W + Module compatibility: 60-cell/120 half-cell and 72-cell/144 half-cell PV modules Peak output power: 366 VA Operating range: 18V - 58V IP Rating: IP67 Weight: 1.05 kg Rated Power: 440 W Min PPT Voltage: 27 V Max PPT Voltage: 45 V DC Startup Voltage: 16 V DC Shutdown Voltage: 0 V Max Input Voltage: 60 V Max DC Power: 400 W Max AC Power (5 Minutes): 295 W Surge AC Power (1 Second): 290 W Max DC Current: 12 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 96.5 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years
£102.20
Enphase 3Phase IQ8MC 54 to 72-cell Microinverter 330VA peak power MC4
Part No: EN-IQ8MC-72-M-INT-3PH Inverters - Micro Inverter Units Rating: 330W Phases: 3 Supplier Code: IQ8MC-72-M-INT Three Phase Phases: 1 or 3 (depending on wiring) MPP Tracker: 1 Inputs per Tracker: 1 Rated AC power: 330VA MPPT Voltage Range: 25 - 45 V Warranty: 25 Years Technical Specification Input current: 14 A Short-circuit current: 25 A Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled Weight: 1.1 kg Rated Power: 330 W Min PPT Voltage: 18 V Max PPT Voltage: 60 V DC Startup Voltage: 22 V DC Shutdown Voltage: 18 V Max Input Voltage: 30 V Max DC Power: 480 W Max AC Power (5 Minutes): 325 W Surge AC Power (1 Second): 330 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 96.7 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years
£119.10

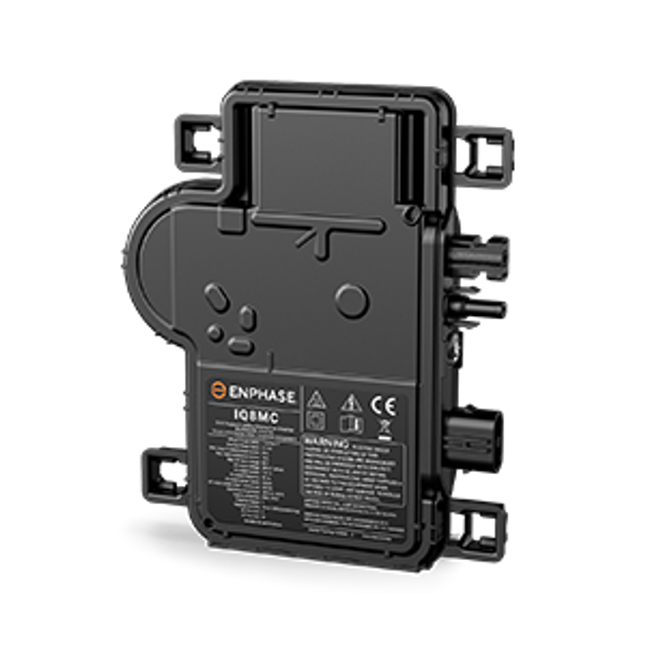

Enphase IQ8MC 54 to 72-cell Microinverter 330VA peak power MC4
Part No: EN-IQ8MC-72-M-INT Inverters - Micro Inverter Units Rating: 330W Phases: 1 Supplier Code: IQ8MC-72-M-INT Phases: 1 or 3 (depending on wiring) MPP Tracker: 1 Inputs per Tracker: 1 Rated AC power: 330VA MPPT Voltage Range: 25 - 45 V Warranty: 25 Years Technical Specification Input current: 14 A Short-circuit current: 25 A Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled Supplier Part No: IQ8MC-72-M-INT Weight: 1.1 kg Rated Power: 330 W Min PPT Voltage: 18 V Max PPT Voltage: 60 V DC Startup Voltage: 22 V DC Shutdown Voltage: 18 V Max Input Voltage: 30 V Max DC Power: 480 W Max AC Power (5 Minutes): 330 W Surge AC Power (1 Second): 325 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 0 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years
£119.10
Enphase IQ7A 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC 3 Phase
Part No: EN-IQ7A-72-M-INT-3PH Inverters - Micro Inverter Units Rating: 500W Phases: 3 PRODUCT FEATURES High performance version of the seventh-generation IQ platform Smart-Grid ready Easily integrated with the Gateway-S™ and Enphase™ monitoring and analysis software Easy to install thanks to lightweight design and improved two-wire cabling Double insulated housing, protection class II Modular design allows simple expansion of system as required Ultra reliable – system keeps working even if a single panel/microinverter fails or panel slips into shade Mobile app allows enhanced control and monitoring possibilities PRODUCT SPECIFICATION Commonly used module pairings: 295W - 460W + Module compatibility: 60-cell/120 half-cell and 72-cell/144 half-cell PV modules Peak output power: 366 VA Operating range: 18V - 58V IP Rating: IP67 Weight: 1.08 kg Rated Power: 500 W Min PPT Voltage: 38 V Max PPT Voltage: 43 V DC Startup Voltage: 33 V DC Shutdown Voltage: 32 V Max Input Voltage: 58 V Max DC Power: 500 W Max AC Power (5 Minutes): 366 W Surge AC Power (1 Second): 349 W Max DC Current: 10.2 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 96.5 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years Enphase Energy, founded in 2006 in California, is the world leader in micro inverter technology with more than 13 million units sold worldwide and over 500,000 installed systems representing over 3GW of clean energy.
£126.40
Enphase IQ7a 60/72 cell MC4 inegrated Microinverter 230VAC
Part No: EN-IQ7A-72-M-INT Inverters - Micro Inverter Units Rating: 349W Phases: 1 This new IQ7A micro inverter can work with 60 and 72 cell solar panels up to peak power of 366VA Product Features: Most Powerful Enphase Microinverter on the market with high power output of 366VA The IQ7+ has a power rating of 295VA making the IQ7A the better choice Lower clipping losses resulting in higher net energy availability The higher the PV module rate, the wider the difference between IQ7+ and IQ7A making the IQ7A the ultimate microinverter It is noteworthy that clipping losses with IQ7A is almost zero until 500Wp Easy to install and light weight Built-in rapid shutdown Optimized for high powered 60 and 72 cell modules Class 11 double insulated IP67 enclosure Smart Grid ready Supplier Part No: IQ7A-72-M-INT Weight: 1.08 kg Rated Power: 349 W Min PPT Voltage: 18 V Max PPT Voltage: 58 V DC Startup Voltage: 33 V DC Shutdown Voltage: 18 V Max Input Voltage: 58 V Max DC Power: 460 W Max AC Power (5 Minutes): 366 W Surge AC Power (1 Second): 366 W Max DC Current: 15 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 0 Euro Efficiency: 96.5 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years Enphase Energy, founded in 2006 in California, is the world leader in micro inverter technology with more than 13 million units sold worldwide and over 500,000 installed systems representing over 3GW of clean energy.
£126.40
Enphase IQ7 Plus 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC
Part No: EN-IQ7PLUS-72-M-INT Inverters - Micro Inverter Units Rating: 290W Phases: 1 Enphase IQ 7+ Microinverter The high-powered smart grid-ready Enphase IQ 7+ Micro™ achieve the highest system efficiency. Part of the Enphase IQ System, the IQ 7+ integrate seamlessly with the Enphase Envoy-S™, and the Enphase Enlighten™ monitoring and analysis software. The IQ 7+ Micro extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty. Easy to Install Lightweight and simple Faster installation with improved, lighter two-wire cabling The IQ7 inverters each come with a DC module connector included. We also stock of spares if required: partno EN-Q-DCC-2-INT. Productive and Reliable Optimized for high powered 60-cell and 72-cell modules More than a million hours of testing Class II double-insulated enclosure Smart Grid Ready Complies with advanced grid support, voltage and frequency ride-through requirements Remotely updates to respond to changing grid requirements Configurable for varying grid profiles Please note, in order to comply with G98/G99 regulations, from 27th of April 2019 EVERY Enphase microinverter system requires Envoy device to commission the system AND it needs to be left on site permanently. Please note you may receive a mix of INT and FR versions, functionality will not be affected as the Envoy will push the appropriate grid profile out to the microinverters regardless. Supplier Part No: IQ7PLUS-72-M-INT Weight: 1.05 kg Rated Power: 290 W Min PPT Voltage: 16 V Max PPT Voltage: 60 V DC Startup Voltage: 22 V DC Shutdown Voltage: 16 V Max Input Voltage: 60 V Max DC Power: 440 W Max AC Power (5 Minutes): 290 W Surge AC Power (1 Second): 290 W Max DC Current: 14 A Max DC Inputs: 1 Has DC Fuses: 0 Connector: MC4 Included Connectors: 1 Euro Efficiency: 96.5 % Transformer: HF MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years Enphase Energy, founded in 2006 in California, is the world leader in micro inverter technology with more than 13 million units sold worldwide and over 500,000 installed systems representing over 3GW of clean energy.
£102.20
