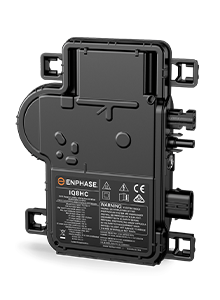

Supplier Code: IQ8HC-72-M-INT
Phases: 1 oder 3 (depending on wiring)
MPP Tracker: 1
Inputs per Tracker: 1
Rated AC power: 384 VA
MPPT Voltage Range: 29.5 - 45 V
Warranty: 25 Years
Technical Specification
Input current: 14 A
Short-circuit current: 25 A
Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled
- Supplier Part No:
- IQ8HC-72-M-INT
- Weight: 1.1 kg
- Rated Power: 384 W
- Min PPT Voltage: 18 V
- Max PPT Voltage: 60 V
- DC Startup Voltage: 22 V
- DC Shutdown Voltage: 18 V
- Max Input Voltage: 60 V
- Max DC Power: 560 W
- Max AC Power (5 Minutes): 366 W
- Surge AC Power (1 Second): 366 W
- Max DC Current: 14 A
- Max DC Inputs: 1
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 0
- Euro Efficiency: 97 %
- Transformer: HF
- MPPT Quantity: 1
- Has Integrated DC Switch: No
- Warranty: 25 years
