Part No: CABLE4-1-50 Cables - DC Cables 4 mm², single-core, black, 50m NEW H1Z2Z2-K certified 50m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. Supplier Part No: CABLE4-1-50 Weight: 2.675 kg Length: 50 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 32 Max Voltage: 1800
£33.66 Exc. VAT
£40.39 Inc. VAT
Part No: MC4-CONN14-2PACK Cables - Connectors A pack of 2x Male and 2x Female cable couplers (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm² Outer diameter cable (dA): 5,0 - 6.0mm Connectors 32.0014P0001-UR and 32.0015P0001-UR are used in this kit. Please use correct MC4 approved tools to crimp these connectors on to bare cables. Keywords: MC4CONN2PACK, Multi Contact, PV Cable Supplier Part No: 100038968 Weight: 0.06 kg Rated Power: 250 W
£5.14 Exc. VAT
£6.17 Inc. VAT
Part No: CABLE4-1-100 Cables - DC Cables 4 mm², single-core, black, 100m NEW H1Z2Z2-K certified 100m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40°C to +90°C. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Supplier Part No: CABLE4-1-100 Weight: 5 kg Length: 100 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 32 Max Voltage: 1800
£64.77 Exc. VAT
£77.72 Inc. VAT
Part No: MC4-CONN14-2-PACK Cables - Connectors A pack of 2x Male and 2x Female cable couplers. Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm² Outer diameter cable (dA): 5,0 - 6,0mm Please use correct MC4 approved tools to crimp these connectors on to bare cables. Supplier code: 32.0014P0001-UR and 32.0015P0001-UR Keywords: MC4CONN2PACK, Multi Contact, PV Cable Weight: 0.04 kg Rated Power: 250 W
£5.66 Exc. VAT
£6.79 Inc. VAT
Part No: MC4-FEM14-MAL15-10PACK Cables - Connectors This part is made up of the following items: 1 x MC4-FEM14-10-PACK MC4 Female Connector 10 Pack 1 x MC4-MAL15-10-PACK MC4 Male Connector 10 Pack Supplier Code:32.0014P0001: Female cable coupler as individual part (including insulating part) Supplier Code:32.0015P0001: Male cable coupler as individual part (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Please use correct MC4 approved tools to crimp these connectors on to bare cables. Weight: 0.02 kg
£27.86 Exc. VAT
£33.43 Inc. VAT
Part No: CABLE4-1-25 Cables - DC Cables 4 mm², single-core, black, 25m NEW H1Z2Z2-K certified 25m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Supplier Part No: CABLE4-1-25 Weight: 1.365 kg Length: 25 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 32 Max Voltage: 1800
£16.81 Exc. VAT
£20.17 Inc. VAT
Part No: CABLE6-1-50 Cables - DC Cables APPLICATION -Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. -Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. -Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/A1, and is tested for durability according to EN 60216. Supplier Part No:CABLE6-1-50 Weight: 3.815 kg Length:50 m Area:6 mm2 Colour:Black Cores:1 - N Max Current:41 Max Voltage:1800
£51.70 Exc. VAT
£62.04 Inc. VAT
Part No: EN-Q-CONN-R-1M Cables - Connectors Field-Wireable Connectors Easily connect Q cables on the roof without complex wiring Make connections from any open connector and center feed any section of cable within branch limits Available in male and female connector types Supplier Part No:Q-CONN-R-10M Weight:0.05 kg
£9.72 Exc. VAT
£11.66 Inc. VAT
Part No: CABLE6-1-25 Cables - DC Cables 6 mm², single-core, black, 25m NEW H1Z2Z2-K certified 25m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Supplier Part No:CABLE6-1-25 Weight:1.87 kg Length:25 m Area:6 mm2 Colour:Black Cores:1 - N Max Current:41 Max Voltage:1800
£28.60 Exc. VAT
£34.32 Inc. VAT
Part No: MC4-14-FEM Cables - Connectors Supplier code:32.0014P0001 Female cable coupler as individual part (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Please use correct MC4 approved tools to crimp these connectors on to bare cables. Supplier Part No: 32.0014P0001-UR Weight: 0.01 kg Length: 0.02 m
£1.42 Exc. VAT
£1.70 Inc. VAT
Part No: MC4-5M-2 Cables - Pre Terminated Cables Keywords: MC4 10M2, 1xMale, 1xFemale each cable, MC4. Stäubli, PV Cable, Pre Terminated Cable Please note: 6mm cable may be substituted at the 4mm price when 4mm cable is out of stock. A mix of 4 and 6mm will be provided Supplier Part No: 100038568 Items in this pack: 2 Weight: 0.58 kg Length: 5 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 44
£24.16 Exc. VAT
£28.99 Inc. VAT
Part No: MC4-FEM14-10-PACK Cables - Connectors Supplier Code:32.0014P0001: Female cable coupler as individual part (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Please use correct MC4 approved tools to crimp these connectors on to bare cables. Supplier Part No: 32.0014P0010-UR Weight: 0.01 kg
£16.24 Exc. VAT
£19.49 Inc. VAT
Part No: CABLE6-1-100-R Cables - DC Cables Supplier Part No:E6S10060BK100 Weight:7.63 kg Length:100 m Area:6 mm2 Colour:Red Cores:1 - N Max Current:41 Max Voltage:1800
£93.00 Exc. VAT
£111.60 Inc. VAT
Part No: CABLE6-1-100 Cables - DC Cables 6 mm, single-core, black, 100m NEW H1Z2Z2-K certified 100m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to1.5kV between conductors as well as between conductor and earth, and not exceeding1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TiV approved PV1-F cable. H1Z2Z2-KPHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TïV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Supplier Part No:CABLE6-1-100 Weight:8.5 kg Length:100 m Area:6 mm2 Colour:Black Cores:1 - N Max Current:41 Max Voltage:1800
£111.20 Exc. VAT
£133.44 Inc. VAT
Part No: CABLE4-1-50-R Cables - DC Cables Supplier Part No:CABLE4-1-50-R Weight:2.86 kg Length:50 m Area:4 mm2 Colour:Red Cores:1 - N Max Current:32 Max Voltage:1800
£45.60 Exc. VAT
£54.72 Inc. VAT
Part No: SUN-CABLE-PACK Storage Systems - Accessory Inverter to Battery long cable pack. Supplier Part No: Battery Cable Pack Long for Sunsynk Weight: 1 kg
£48.65 Exc. VAT
£58.38 Inc. VAT

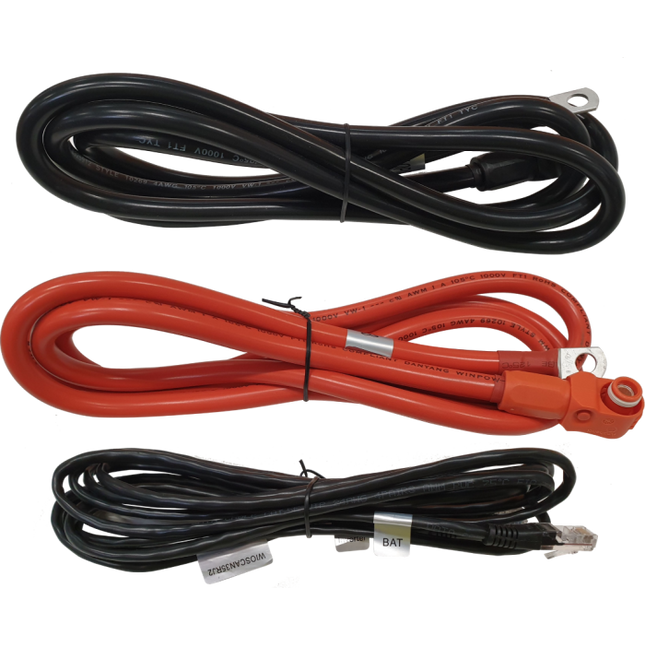

Part No: SUN-CABLE-SHORT Storage Systems - Accessory Battery to Battery short cable pack. For Sunsynk CATL battery only. Does not work with Sunsynk BYD battery. Supplier Part No: Battery Cable Pack Short for Sunsynk Weight: 0.2 kg Length: 0.3 m
£58.31 Exc. VAT
£69.97 Inc. VAT
Part No: MC4-CAP-MALE Cables - Accessories Snap-in lock Supplier Part No: 32.0716 Weight: 0.019 kg
£0.82 Exc. VAT
£0.98 Inc. VAT
Part No: MC4-CAP-FEMALE Cables - Accessories Snap-in lock Supplier Part No: 32.0717 Weight: 0.005 kg
£0.82 Exc. VAT
£0.98 Inc. VAT
Part No: MC4-15-MAL Cables - Connectors Supplier Code:32.0015P0001 Male cable coupler as individual part (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Please use correct MC4 approved tools to crimp these connectors on to bare cables. Supplier Part No: 32.0015P0001-UR Weight: 0.01 kg
£0.95 Exc. VAT
£1.14 Inc. VAT
Part No: EN-Q-DCC-2-INT Cables - Connectors Enphase DC adaptor to MC4 (max voltage 100V DC). Single part. The DC adaptor is already included with the IQ7 inverter range. This partno is the adaptor on its own in case of needing to replace a damaged or lost one. Supplier Part No:Q-DCC-2-INT Weight:0.07 kg
£10.37 Exc. VAT
£12.44 Inc. VAT
Part No: MC4-2M-2 Cables - Pre Terminated Cables MC4 10M2, 1xMale, 1xFemale each cable, MC4.PV Cable, Pre Terminated Cable. Please note: 6mm cable may be substituted at the 4mm price when 4mm cable is out of stock. A mix of 4 and 6mm will be provided. Supplier Part No: 96274 Weight: 0.27 kg Length: 2 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 44
£10.64 Exc. VAT
£12.77 Inc. VAT

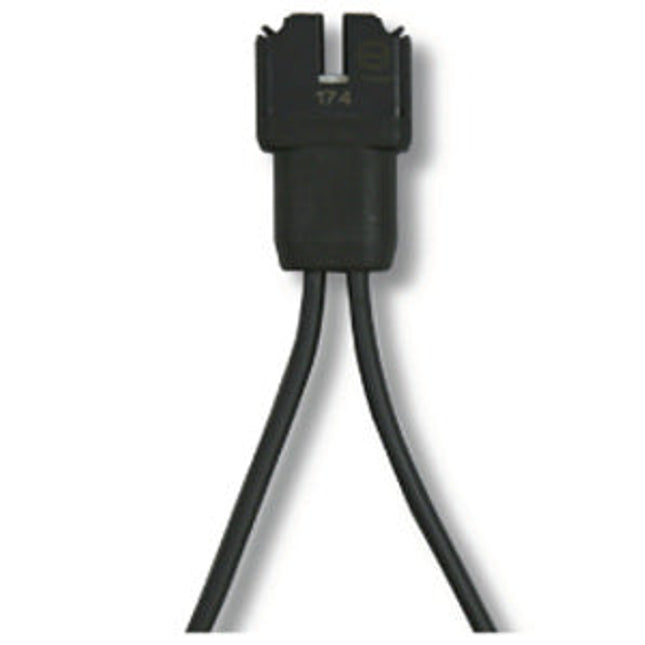

Part No: EN-Q-25-10-1 Cables - Single Phase AC Cable Enphase Q Cable 1ph 1.3m Portrait (price per connector) Supplier Part No:Q-25-10-240 Weight:0.22 kg
£13.41 Exc. VAT
£16.09 Inc. VAT
Part No: MC4-MAL15-10-PACK Cables - Connectors Supplier Code:32.0015P0001: Male cable coupler as individual part (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested plug connectors, 14 years of experience in the field Suitable for assembly with cross-sections of 4 and 6 mm² Rated current: 39 A (for 4 and 6mm2 cable) Please use correct MC4 approved tools to crimp these connectors on to bare cables. Supplier Part No: 32.0015P0010-UR Weight: 0.01 kg
£11.65 Exc. VAT
£13.98 Inc. VAT
Part No: MC4-EVO2A-0317-MAL Cables - Connectors The MC4-Evo2A is the latest addition to the Stäubli Electrical Connector PV portfolio. Internationally certified with IEC, UL, JET, cTÜVus Approved for 1500 V DC (IEC) MULTILAM Technology, has proven the quality and durability several 100 million times since 2004 Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP68) MC4-EVO2 Male cable coupler as individual part (including insulating part) PLEASE NOTE THIS IS A NEW MC4-EVO2 CONNECTOR AND IT WILL REQUIRE SPECIAL MC4-EVO2 CRIMPING TOOL. THE STANDARD MC4 TOOLS SHOULD NOT BE USED WITH THIS TYPE OF CONNECTOR. DI comes with Maroon seal. Supplier Code: 32.0317P0001 Rated current: 45A 4mm2 and 53A 6mm2 cables Supplier Part No: 32.0317P0001 Weight: 0.015 kg
£2.87 Exc. VAT
£3.44 Inc. VAT
Part No: MC4-EVO2-FEM1 Cables - Connectors The MC4-Evo2 is the latest addition to the Stäubli Electrical Connectors PV connector portfolio. Internationally certified with IEC, UL, JET, cTÜVus Approved for 1500 V DC (IEC) MULTILAM Technology, has proven the quality and durability several 100 million times since 2004 Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP68) MC4 Evo 2 Female cable coupler as individual part (including insulating part) PLEASE NOTE THIS IS A NEW MC4-EVO2 CONNECTOR AND IT WILL REQUIRE SPECIAL MC4-EVO2 CRIMPING TOOL. THE STANDARD MC4 TOOLS SHOULD NOT BE USED WITH THIS TYPE OF CONNECTOR. DI comes with Maroon seal. Supplier Code: 32.0086 Rated current: 45A 4mm2 and 53A 6mm2 cables Supplier Part No: 32.0086P0001-UR Weight: 0.011 kg
£1.86 Exc. VAT
£2.23 Inc. VAT
Part No: CABLE4-1-100-Brown Cables - DC Cables 4 mm², single-core, Brown, 100m NEW H1Z2Z2-K certified 100m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40°C to +90°C. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Red cables are also avaialble, Supplier Part No:CABLE4-1-100-Brown Weight:5.74 kg Length:100 m Area:4 mm2 Colour:Brown Cores:1 - N Max Current:32 Max Voltage:1800
£84.60 Exc. VAT
£101.52 Inc. VAT
Part No: SUN-CABLE-SHORT Storage Systems - Accessory Battery to Battery short cable pack. For Sunsynk CATL battery only. Does not work with Sunsynk BYD battery. Supplier Part No: Battery Cable Pack Short for Sunsynk Weight: 0.2 kg Length: 0.3 m
£64.31 Exc. VAT
£77.17 Inc. VAT
Part No: EN-Q-25-17-1 Cables - Single Phase AC Cable Enphase Q Cable 1ph 2.0m Landscape 60-cell (price per connector) Supplier Part No:Q-25-17-240 Weight:0.312 kg
£18.98 Exc. VAT
£22.78 Inc. VAT
Part No: SE-CABLE-B2I-4.6 Storage Systems - Battery Cable Battery to Inverter cables for SE-BATTERY-4.6KWH Cable Length: 2.5m Supplier Part No: IAC-RBAT-5KCINV-01 Weight: 0.35 kg
£132.00 Exc. VAT
£158.40 Inc. VAT
Part No: IAC-RBAT-5KCINV-02 Storage Systems - Battery Cable Cable Set Battery To Inverter For SE*K-RWS SolarEdge Home Wave Inverters. Supplier Part No: IAC-RBAT-5KCINV-02 Weight: 2.82 kg
£132.00 Exc. VAT
£158.40 Inc. VAT
Part No: SE-CABLE-T2T-4.6 Storage Systems - Battery Cable Tower to Tower Cables for SE-BATTERY-4.6KWH Supplier Part No: IAC-RBAT-5KCTOW-01 Weight: 0.35 kg
£115.00 Exc. VAT
£138.00 Inc. VAT
Part No: SE-CABLE-B2B-4.6 Storage Systems - Battery Cable Supplier Part No: IAC-RBAT-5KCBAT-01 Weight: 0.35 kg
£38.37 Exc. VAT
£46.04 Inc. VAT
Part No: MC4-2M-1 Cables - Pre Terminated Cables Snap-in lock Supplier Part No: 32.0026-20021 Weight: 0.13 kg Length: 2 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 44
£6.10 Exc. VAT
£7.32 Inc. VAT
Part No: CABLE6-1-500-R Cables - DC Cables APPLICATION -Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. -Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/ A1, and is tested for durability according to EN 60216. Supplier Part No:CABLE6-1-500-R Weight:42 kg Length:500 m Area:6 mm2 Colour:Red Cores:1 - N Max Current:41 Max Voltage:1800
£587.00 Exc. VAT
£704.40 Inc. VAT
Part No: CABLE4-1-100-R Cables - DC Cables 4 mm², single-core, RED, 100m NEW H1Z2Z2-K certified 100m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40°C to +90°C. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Supplier Part No:CABLE4-1-100-R Weight:6 kg Length:100 m Area:4 mm2 Colour:Red Cores:1 - N Max Current:32 Max Voltage:1800
£84.80 Exc. VAT
£101.76 Inc. VAT
Part No: CABLE10-1-500 Cables - DC Cables 10 mm², single-core, Black, 500 m Cross section: 10 mm² System voltage: 1800 V Rated current: 98 A according to DIN VDE 0298 part 4 Operating temperature range: -40 - 120 °C Solar cable, high temperature and UV-resistant, reliable for inside and outside use. Resistant to ammonia, ozone, mineral oil and acid. Excellent fire-resistance. This Cable is Double Insulated. Colour: Black Keywords: CABLE101500, Eland, PV Cable, DC Cable Supplier Part No:E6S10500BL500 Weight:65 kg Length:500 m Area:10 mm2 Colour:Black Cores:1 - N Max Current:57 Max Voltage:1800
£953.00 Exc. VAT
£1,143.60 Inc. VAT
Part No: CABLE6-1-250 Cables - DC Cables 6 mm², single-core, black, 250m NEW H1Z2Z2-K certified 250m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Supplier Part No:CABLE6-1-250 Weight:19.8 kg Length:0.29 m Length:250 m Area:6 mm2 Colour:Black Cores:1 - N Max Current:41 Max Voltage:1800
£278.00 Exc. VAT
£333.60 Inc. VAT
Part No: CABLE4-1-1000 Cables - DC Cables 4 mm², single-core, black, 1000m 1000m solar cable with length label. Supplied on a reusable spool. Conductor cross-section: 4 mm² (this is not the cable diameter, but rather the cross-sectional area). System voltage: 1800 V Rated current: 70 A according to DIN VDE 0298 part 4 Operating temperature range: -40 - 120 °C Solar cable, high temperature and UV-resistant, reliable for inside and outside use. Resistant to ammonia, ozone, mineral oil and acid. Excellent fire-resistance. Colour: Black It's important to choose the correct cable spec for your project. We can provide assistance with this if needed. Supplier Part No:SOLAR1X4BK Weight:60 kg Length:1,000 m Area:4 mm2 Colour:Black Cores:1 - N Max Current:32 Max Voltage:1800
£620.00 Exc. VAT
£744.00 Inc. VAT
Part No: CABLE4-1-100-Grey Cables - DC Cables 4 mm², single-core, Grey, 100m NEW H1Z2Z2-K certified 100m solar cable with length label. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40°C to +90°C. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor Flexible tinned copper (Class 5) Insulation Halogen-free cross-linked compound Outersheath Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire. Red cables are also available. Supplier Part No:CABLE4-1-100-Grey Weight:5.755 kg Length:100 m Area:4 mm2 Colour:Grey Cores:1 - N Max Current:32 Max Voltage:1800
£84.60 Exc. VAT
£101.52 Inc. VAT
Part No: CABLE10-1-100 Cables - DC Cables 10 mm², single-core, black, 100m 100m solar cable with length label. Supplied on a reusable spool. Conductor cross-section: 10 mm² (this is not the cable diameter, but rather the cross-sectional area). System voltage: 1800 V Rated current: 70 A according to DIN VDE 0298 part 4 Operating temperature range: -40 - 120 °C Solar cable, high temperature and UV-resistant, reliable for inside and outside use. Resistant to ammonia, ozone, mineral oil and acid. Excellent fire-resistance. Colour: Black It's important to choose the correct cable spec for your project. We can provide assistance with this if needed. Supplier Part No:CABLE10-1-100 Weight:13.42 kg Length:100 m Area:10 mm2 Colour:Black Cores:1 - N Max Current:57 Max Voltage:1800
£190.70 Exc. VAT
£228.84 Inc. VAT
Part No: CABLE6-1-2 Cables - DC Cables APPLICATION -Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. -Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/ A1, and is tested for durability according to EN 60216. Supplier Part No:CABLE6-1-2 Weight:0.14 kg Length:2 m Area:6 mm2 Colour:Black Cores:1 - N Max Current:41 Max Voltage:1800
£4.10 Exc. VAT
£4.92 Inc. VAT
Part No: CABLE6-1-2-R Cables - DC Cables APPLICATION -Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. -Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/ A1, and is tested for durability according to EN 60216. Supplier Part No:CABLE6-1-2-R Weight:0.14 kg Length:2 m Area:6 mm2 Colour:Red Cores:1 - N Max Current:41 Max Voltage:1800
£5.73 Exc. VAT
£6.88 Inc. VAT
Part No: CS-T4F-PC1-MC4M Cables - MC4 Jumper Cable Female Positive Tlian T4 PC1 connector to Staubli Male Negative MC4 connector jumper cable -300mm length. Canadian Solar part code: 11006357 T4PC1P-MC4N 300mm IEC1KV&UL1KV Supplier Part No:CS-T4F-PC1-MC4M Weight:0.05 kg
£3.54 Exc. VAT
£4.25 Inc. VAT
Part No: SUN-CABLE-PACK Storage Systems - Accessory Inverter to Battery long cable pack. Supplier Part No: Battery Cable Pack Long for Sunsynk Weight: 1 kg
£69.65 Exc. VAT
£83.58 Inc. VAT

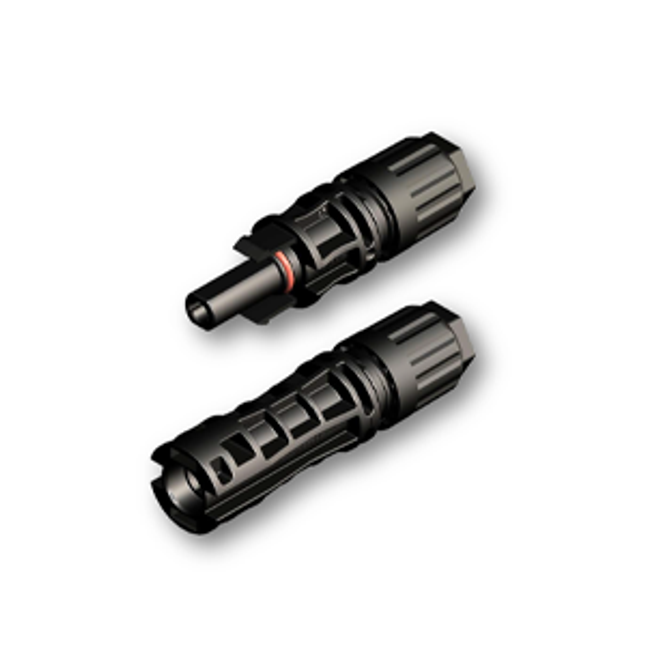

Part No: JK03M Cables - Connectors PV Cable Connector: PV-JK03M/xy series High security, only unbolt by tools. Low contact resistance. Retaining structure of nut to keep torsion valid. Resistance to ozone and ultraviolet radiation. Degree of Protection : IP68. Certification of TÜV, UL, and JET. Compatible with the first-generation product of JinKO. Supplier Part No: JK03M Items in this pack: 2 Weight: 0.14 kg
£2.35 Exc. VAT
£2.82 Inc. VAT
Part No: HQC4-PAIR Cables - Connectors HQC4 Connector pair (1x Male, 1x Female) for Q-Cells Supplier Part No: HQC4-PAIR Weight: 0.042 kg
£2.10 Exc. VAT
£2.52 Inc. VAT
Part No: MC4-EVO2A-0316-FEM Cables - Connectors The MC4-Evo2A is the latest addition to the Stäubli Electrical Connector PV portfolio. Internationally certified with IEC, UL, JET, cTÜVus Approved for 1500 V DC (IEC) MULTILAM Technology, has proven the quality and durability several 100 million times since 2004 Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP68) MC4 Evo 2 Female cable coupler as individual part (including insulating part) PLEASE NOTE THIS IS A NEW MC4-EVO2 CONNECTOR AND IT WILL REQUIRE SPECIAL MC4-EVO2 CRIMPING TOOL. THE STANDARD MC4 TOOLS SHOULD NOT BE USED WITH THIS TYPE OF CONNECTOR. DI comes with Maroon seal. Supplier Code: 32.0316P0001 Rated current: 45A 4mm2 and 53A 6mm2 cables Important The MC4-EVO2A-0316-FEM connectors are compatible with the MC4-EVO2-MAL1 connectors. Supplier Part No: 32.0316P0001 Weight: 0.013 kg
£3.54 Exc. VAT
£4.25 Inc. VAT
