Elettro Brescia 10mm2 single-core DC cable 100m - Black

Description

Part No: CABLE10-1-100 Cables - DC Cables

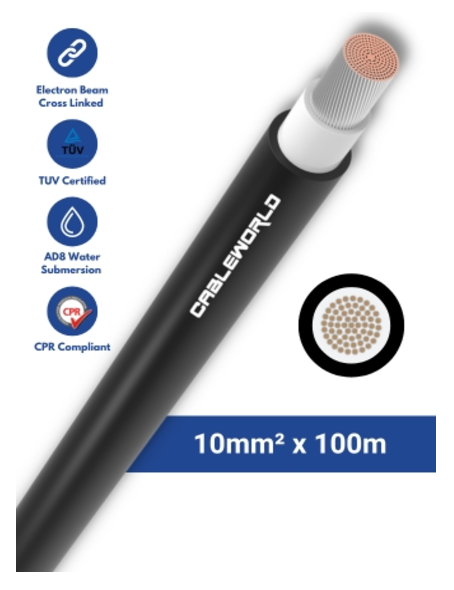

    10 mm², single-core, black, 100m

    100m solar cable with length label. Supplied on a reusable spool.

    Conductor cross-section: 10 mm² (this is not the cable diameter, but rather the cross-sectional area).  System voltage: 1800 V Rated current: 70 A according to DIN VDE 0298 part 4 Operating temperature range: -40 - 120 °C Solar cable, high temperature and UV-resistant, reliable for inside and outside use. Resistant to ammonia, ozone, mineral oil and acid. Excellent fire-resistance. Colour: Black

    It's important to choose the correct cable spec for your project. We can provide assistance with this if needed.



    Supplier Part No:CABLE10-1-100

    Weight:13.42 kg

    Length:100 m

    Area:10 mm2

    Colour:Black

    Cores:1 - N

    Max Current:57

    Max Voltage:1800

    Product form

    Part No: CABLE10-1-100 Cables - DC Cables 10 mm², single-core, black, 100m 100m solar cable with length label. Supplied on a... Read more

    £190.70 Exc. VAT
    £228.84 Inc. VAT

    • Quality
    • Reliabilty
    • Trusted

    Description

    Part No: CABLE10-1-100 Cables - DC Cables

      10 mm², single-core, black, 100m

      100m solar cable with length label. Supplied on a reusable spool.

      Conductor cross-section: 10 mm² (this is not the cable diameter, but rather the cross-sectional area).  System voltage: 1800 V Rated current: 70 A according to DIN VDE 0298 part 4 Operating temperature range: -40 - 120 °C Solar cable, high temperature and UV-resistant, reliable for inside and outside use. Resistant to ammonia, ozone, mineral oil and acid. Excellent fire-resistance. Colour: Black

      It's important to choose the correct cable spec for your project. We can provide assistance with this if needed.



      Supplier Part No:CABLE10-1-100

      Weight:13.42 kg

      Length:100 m

      Area:10 mm2

      Colour:Black

      Cores:1 - N

      Max Current:57

      Max Voltage:1800
