IP43 protection When installed with the screw terminals oriented downwards.   Screw terminals No special tools needed for installation. Brand Victron Energy Manufacturer Part Number ORI241205200R GTIN 8719076022855 Voltage 24/12V Cont. Output Current 5A Protection Category IP43 Efficiency 95% Bluetooth Enabled No Dimensions H53 x W51 x D27mm Weight 0.09Kg Warranty 5 Years Country of Manufacture India

Read more less

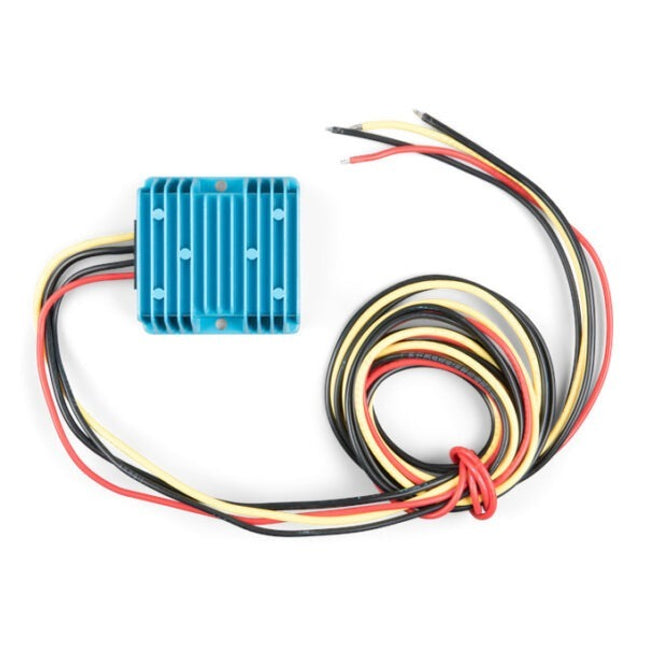

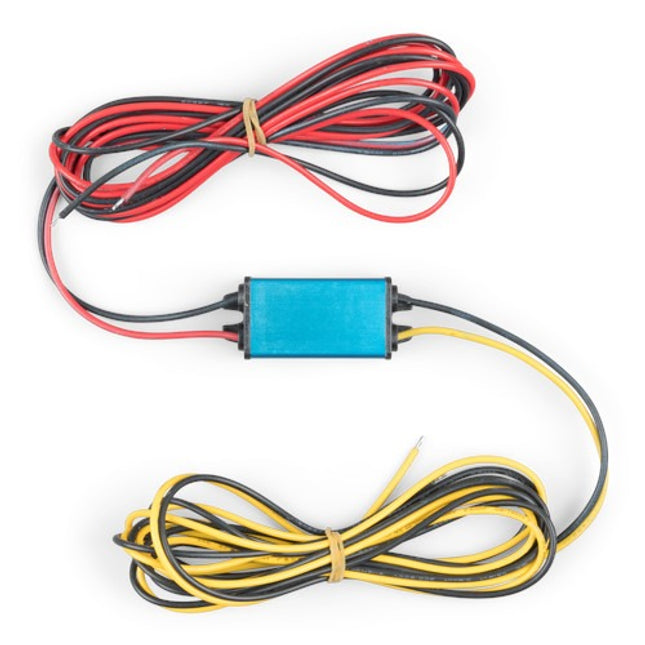

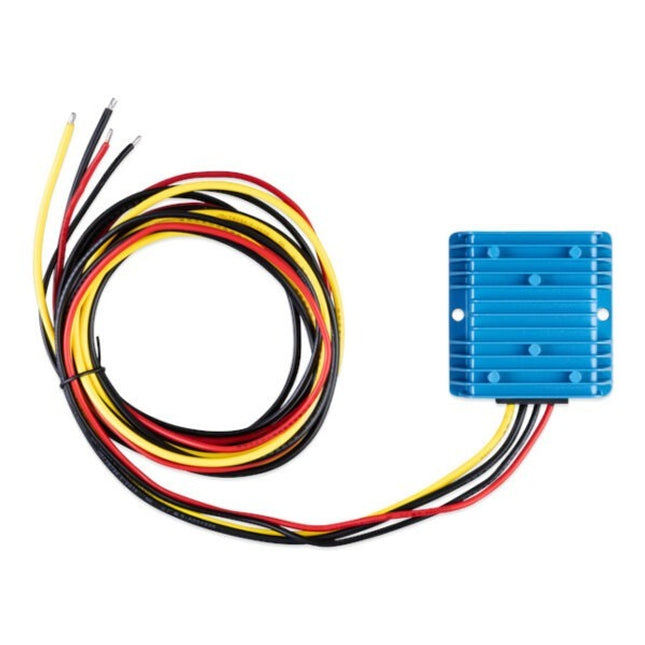

Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.   Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.   Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.   Protected against overheating It can be used in a hot environment such as a machine room. Brand Victron Energy Manufacturer Part Number ORI241205260 GTIN 8719076048428 Voltage 24/12V Cont. Output Current 5A Protection Category IP67 Efficiency 93% Bluetooth Enabled No Dimensions H25 x W43 x D20mm Weight 0.05Kg Warranty 5 Years Country of Manufacture China

Read more less

Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.   Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.   Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.   Protected against overheating It can be used in a hot environment such as a machine room. Brand Victron Energy Manufacturer Part Number ORI241210260 GTIN 8719076048435 Voltage 24/12V Cont. Output Current 10A Protection Category IP67 Efficiency 93% Bluetooth Enabled No Dimensions H74 x W74 x D32mm Weight 0.3Kg Warranty 5 Years Country of Manufacture China

Read more less

  IP43 protection When installed with the screw terminals oriented downwards.   Screw terminals No special tools needed for installation. Brand Victron Energy Manufacturer Part Number ORI241210200R GTIN 8719076022893 Voltage 24/12V Cont. Output Current 10A Protection Category IP43 Efficiency 97% Bluetooth Enabled No Dimensions H73 x W94 x D37mm Weight 0.2Kg Warranty 5 Years Country of Manufacture India

Read more less

IP43 protection When installed with the screw terminals oriented downwards.   Screw terminals No special tools needed for installation. Brand Victron Energy Manufacturer Part Number ORI241215200R GTIN 8719076022930 Voltage 24/12V Cont. Output Current 15A Protection Category IP43 Efficiency 97% Bluetooth Enabled No Dimensions H73 x W94 x D45mm Weight 0.25Kg Warranty 5 Years Country of Manufacture India

Read more less

IP43 protection When installed with the screw terminals oriented downwards.   Screw terminals No special tools needed for installation. Brand Victron Energy Manufacturer Part Number ORI241220200R GTIN 8719076023005 Voltage 24/12V Cont. Output Current 20A Protection Category IP43 Efficiency 97% Bluetooth Enabled No Dimensions H73 x W94 x D45mm Weight 0.25Kg Warranty 5 Years Country of Manufacture India

Read more less

Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.   Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.   Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.   Protected against overheating It can be used in a hot environment such as a machine room. Brand Victron Energy Manufacturer Part Number ORI241220260 GTIN 8719076048442 Voltage 24/12V Cont. Output Current 20A Efficiency 95% Protection Category IP67 Bluetooth Enabled No Dimensions H74 x W74 x D32mm Weight 0.3Kg Warranty 5 Years Country of Manufacture China

Read more less

Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). Low power models: please see Orion-Tr series  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122408020 Input Voltage Range 9-18V Output Voltage 24V Under Voltage Shutdown 8V Under Voltage Restart 10V Continuous Output Current 8A DC Connection Faston tabs 6.3mm Remote on-off No Galvanic Isolation No Can be connected in parallel No Protection Category IP20 Dimensions H45 x W90 x D115mm Weight (kg) 0.4 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI244810110 Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 48.2V Output Voltage Adjust Range 40-60V Short Circuit Output Current 19A Cont. Output Power at 25°C 120W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI121210110R Input Voltage Range 8-17V Under Voltage Shutdown 7V Under Voltage Restart 7.5V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 32A Cont. Output Power at 25°C 110W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). Low power models: please see Orion-Tr series  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122410020 Input Voltage Range 9-18V Output Voltage Adjustable 20-30V F set 26.4V Under Voltage Shutdown 8V Under Voltage Restart 10V Continuous Output Current 10A DC Connection Faston tabs 6.3 mm Remote on-off No Galvanic Isolation No Can be connected in parallel Yes Protection Category IP20 Dimensions H45 x W90 x D125mm Weight (kg) 0.4 Warranty 5 Years

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122410110 Input Voltage Range 8-17V Under Voltage Shutdown 7V Under Voltage Restart 7.5V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 23A Cont. Output Power at 25°C 120W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI241210110R Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 39A Cont. Output Power at 25°C 110W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI242410110R Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 30A Cont. Output Power at 25°C 120W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI481210110 Input Voltage Range 32-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 27A Cont. Output Power at 25°C 110W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI484810110 Input Voltage Range 32-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 48.2V Output Voltage Adjust Range 40-60V Short Circuit Output Current 17A Cont. Output Power at 25°C 120W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI482410110 Input Voltage Range 32-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 25A Cont. Output Power at 25°C 120W DC Connection Screw Terminals Protection Category IP43 Dimensions H100 x W113 x D47mm Weight (kg) 0.42 Warranty 5 Years

Read more less

All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.   All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.   Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).   Low power models: please see Orion-Tr series Brand Victron Energy Manufacturer Part Number ORI241225020 GTIN 8719076023012 Voltage 24/12V Cont. Output Current 25A Protection Category IP20 Efficiency 96% Bluetooth Enabled No Dimensions H65 x W88 x D160mm Weight 0.7Kg Warranty 5 Years

Read more less

All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.   All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.   Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).   Low power models: please see Orion-Tr series Brand Victron Energy Manufacturer Part Number ORI241240021 GTIN 8719076038726 Voltage 24/12V Cont. Output Current 40A Protection Category IP20 Efficiency 95% Bluetooth Enabled No Dimensions H65 x W88 x D185mm Weight 0.85Kg Warranty 5 Years Country of Manufacture India

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI121222110 Input Voltage Range 8-17V Under Voltage Shutdown 7V Under Voltage Restart 7.5V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 40A Cont. Output Power at 25°C 280W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122424110 Input Voltage Range 8-17V Under Voltage Shutdown 7V Under Voltage Restart 7.5V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 25A Cont. Output Power at 25°C 280W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI241224110 Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 50A Cont. Output Power at 25°C 300W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI242428110 Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 30A Cont. Output Power at 25°C 320W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI244828110 Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 48.2V Output Voltage Adjust Range 40-60V Short Circuit Output Current 25A Cont. Output Power at 25°C 320W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI482428110 Input Voltage Range 32-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 30A Cont. Output Power at 25°C 320W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI484828110 Input Voltage Range 32-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 48.2V Output Voltage Adjust Range 40-60V Short Circuit Output Current 25A Cont. Output Power at 25°C 320W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.   All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.   Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).   Low power models: please see Orion-Tr series Brand Victron Energy Manufacturer Part Number ORI241270020 GTIN 8719076023043 Voltage 24/12V Cont. Output Current 70A Protection Category IP20 Efficiency 92% Bluetooth Enabled No Dimensions H65 x W88 x D195mm Weight 0.9Kg Warranty 5 Years Country of Manufacture India

Read more less

Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).   All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.   All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.   Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).   Low power models: please see Orion-Tr series  Brand Victron Energy Manufacturer Part Number ORI241270030 GTIN 8719076023050 Voltage 24/12V Cont. Output Current 70A Protection Category IP20 Efficiency 92% Bluetooth Enabled No Dimensions H65 x W88 x D195mm Weight 0.9Kg Warranty 5 Years Country of Manufacture India

Read more less

Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). Low power models: please see Orion-Tr series  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122420020 Input Voltage Range 9-18V Output Voltage Adjustable 20-30V F set 26.4V Under Voltage Shutdown 8V Under Voltage Restart 10V Continuous Output Current 20A DC Connection M6 bolts Remote on-off Yes Galvanic Isolation No Can be connected in parallel Yes Protection Category IP20 Dimensions H65 x W88 x D195mm Weight (kg) 0.9 Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C. Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI122424120 Warranty 5 Years Weight (kg) 1.3 Efficiency 88% Dimensions H130 x W186 x D70mm Input Voltage Range 8-17 V Protection Category IP43 Nominal Output Voltage 24.2 V Output Voltage Adjust Range 20-30 V Under Voltage Shutdown 7 V Under Voltage Restart 7.5 V DC Connection Screw Terminals Cont. Output Power at 25°C (W) 280 Cont. Output Power at 40°C (W) 240

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI241224120 Input Voltage Range 16-35V Output Voltage Adjust Range 10-15V Nominal Output Voltage 12.2V Cont. Output Power at 25°C (W) 300W Cont. Output Power at 40°C (W) 240W Under Voltage Shutdown 14V Under Voltage Restart 15V DC Connection Screw Terminals Efficiency 88% Protection Category IP43 Dimensions H130 x W186 x D70mm Weight (kg) 1.3 Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI242428120 Input Voltage Range 16-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Cont. Output Power at 25°C (W) 320W Cont. Output Power at 40°C (W) 280W Efficiency 89% DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70mm Weight (kg) 1.3 Warranty 5 Years

Read more less

 Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI121222110 Input Voltage Range 8-17V Under Voltage Shutdown 7V Under Voltage Restart 7.5V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 40A Cont. Output Power at 25°C 280W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70 mm Weight (kg) 1.3 Warranty 5 Years

Read more less

 Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.    PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI122441110 Input Voltage Range 10-17V Under Voltage Shutdown 7V Under Voltage Restart 7.5V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 40A Cont. Output Power at 25°C 430W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D80 mm Weight (kg) 1.8 Warranty 5 Years

Read more less

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only.  PLEASE CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number ORI241240110 Input Voltage Range 20-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 60A Cont. Output Power at 25°C 430W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D80 mm Weight (kg) 1.8 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI242441110 Input Voltage Range 20-35V Under Voltage Shutdown 14V Under Voltage Restart 15V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 40A Cont. Output Power at 25°C 480W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70mm Weight (kg) 1.6 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI482441110 Input Voltage Range 40-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 24.2V Output Voltage Adjust Range 20-30V Short Circuit Output Current 40A Cont. Output Power at 25°C 430W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70mm Weight (kg) 1.6 Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI484841110 Input Voltage Range 40-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 48.2V Output Voltage Adjust Range 40-60V Short Circuit Output Current 25A Cont. Output Power at 25°C 430W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D70mm Weight (kg) 1.6 Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI121236140 Input voltage range 10-17V Under voltage shut down 7V Under voltage restart 7.5V Nominal output voltage 12.2V Output voltage adjust range 10-15V Cont. output current at nominal output voltage and 40°C 30A Short circuit output current 60A Cont. output power at 25°C 430W Cont. output power at 40°C 360W Efficiency 87% DC connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80mm Weight 1.8Kg Warranty 5 Years

Read more less

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.  IP43 protectionWhen installed with the screw terminals oriented downwards.  Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only. Brand Victron Energy Manufacturer Part Number ORI481240110 Input Voltage Range 40-70V Under Voltage Shutdown 28V Under Voltage Restart 30V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Short Circuit Output Current 60A Cont. Output Power at 25°C 430W DC Connection Screw Terminals Protection Category IP43 Dimensions H130 x W186 x D80 mm Weight (kg) 1.8 Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI122436140 Input voltage range 10-17V Under voltage shut down 7V Under voltage restart 7.5V Nominal output voltage 24.2V Output voltage adjust range 20-30V Cont. output current at nominal output voltage and 40°C 15A Short circuit output current 40A Cont. output power at 25°C 430W Cont. output power at 40°C 360W Efficiency 88% DC connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80mm Weight 1.8Kg Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable)   Brand Victron Energy Manufacturer Part Number ORI242440140 Input voltage range 20-35V Under voltage shut down 14V Under voltage restart 15V Nominal output voltage 24.2V Output voltage adjust range 20-30V Cont. output current at nominal output voltage and 40°C 17A Short circuit output current 40A Cont. output power at 25°C 480W Cont. output power at 40°C 400W Efficiency 89% DC connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80mm Weight 1.6Kg Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI241236140 GTIN 8719076048978 Input Voltage Range 20-35V Under voltage shut down 14V Under Voltage Restart 15V Nominal Output Voltage 12.2V Output Voltage Adjust Range 10-15V Cont. output current at nominal output voltage and 40°C 30A Short Circuit Output Current 60A Cont. Output Power at 25°C 430W Cont. output power at 40°C 360W Efficiency 88% DC Connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80mm Weight 1.8Kg Warranty 5 Years

Read more less

  Brand Victron Energy Manufacturer Part Number ORI241221226 GTIN 8719076048541 Voltage 24/12V Cont. Output Current 100A Protection Category IP67 Efficiency 96% Bluetooth Enabled No Dimensions H265 x W127 x D63mm Weight 2.15Kg Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI122436120 Warranty 5 Years Weight (kg) 1.8 Dimensions H130 x W186 x D80 mm Input Voltage Range 10-17 V Protection Category IP43 Power Rating (W) 360 Nominal Output Voltage 24.2 V Output Voltage Adjust Range 20-30 V Short Circuit Output Current 40 A Cont. Output Power at 25°C 430 W Under Voltage Shutdown 7 V Under Voltage Restart 7.5 V DC Connection Screw Terminals

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI121236120 GTIN 8719076047698 Input Voltage Range 10-17 V Under Voltage Shutdown 7 V Under Voltage Restart 7.5 V Nominal Output Voltage 12.2 V Output Voltage Adjust Range 10-15 V Cont. output current at nominal output voltage and 40°C 30A Short Circuit Output Current 60 A Cont. Output Power at 25°C 430 W Cont. output power at 40°C 360W Efficiency 87% DC Connection Screw Terminals IP Rating IP43 Dimensions H130 x W186 x D80 mm Weight 1.8Kg Warranty 5 Years

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI241236120 Warranty 5 Years Weight (kg) 1.6Kg Dimensions H130 x W186 x D70mm Input Voltage Range 20-35 V Protection Category IP43 Power Rating (W) 360 Nominal Output Voltage 12.2 V Output Voltage Adjust Range 10-15 V Short Circuit Output Current 60 A Cont. Output Power at 25°C 430 W Under Voltage Shutdown 14 V Under Voltage Restart 15 V

Read more less

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.   Features Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.  For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) Brand Victron Energy Manufacturer Part Number ORI242440120 Warranty 5 Years Weight (kg) 1.6 Dimensions H130 x W186 x D70mm Input Voltage Range 20-35 V Protection Category IP43 Power Rating (W) 400 Nominal Output Voltage 24.2 V Output Voltage Adjust Range 20-30 V Short Circuit Output Current 40 A Cont. Output Power at 25°C 480 W Under Voltage Shutdown 14 V Under Voltage Restart 15 V DC Connection Screw Terminals

Read more less
