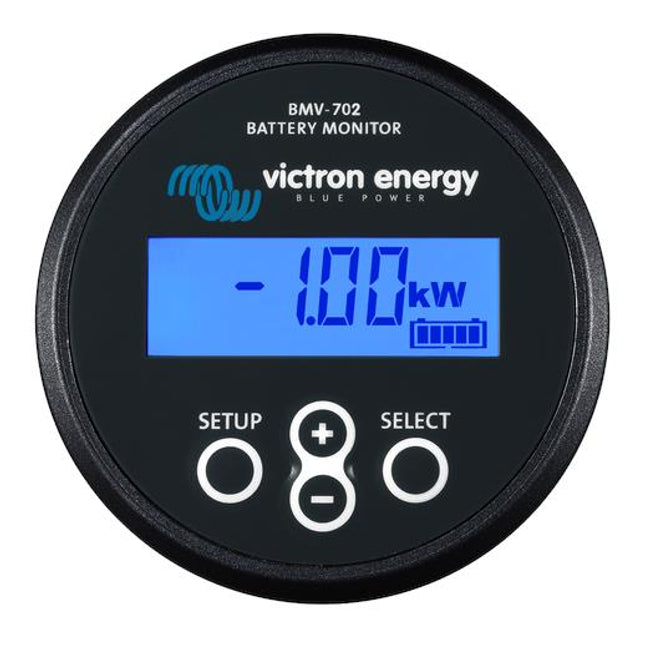

 The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.  Features Battery ‘fuel gauge’, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. Easy to install All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting. BMV-702 additional features Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.   Standard features Battery voltage, current, power, ampere-hours consumed and state of charge Remaining time at the current rate of discharge Programmable visual and audible alarm Programmable relay, to turn off non critical loads or to run a generator when needed 500 Amp quick connect shunt and connection kit Shunt selection capability up to 10.000 Amps VE.Direct communication port Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health Wide input voltage range: 6,5 – 95V High current measurement resolution: 10 mA (0,01A) Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number BAM010702000R Supply Voltage Range 6.5-95 VDC Battery Capacity (Ah) 1-9999 Temperature Sensor Optional VE.Direct Communication Port Yes Protection Category IP55 Front Bezel 69 x 69mm Body Diameter & Depth 52 x 31mm Warranty 5 Years
