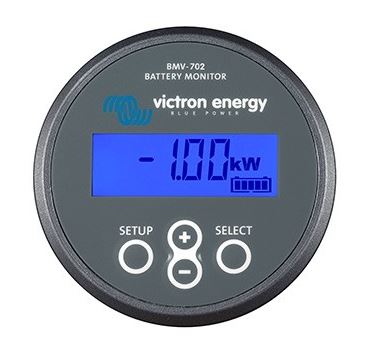

Victron Energy BMV-702 Battery Monitor – BAM010702000R

Description

 The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

 Features

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

Easy to install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.

BMV-702 additional features

Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.



Standard features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10.000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6,5 – 95V
  • High current measurement resolution: 10 mA (0,01A)
  • Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
      Brand

      Victron Energy

      Manufacturer Part Number

      BAM010702000R

      Supply Voltage Range

      6.5-95 VDC

      Battery Capacity (Ah)

      1-9999

      Temperature Sensor

      Optional

      VE.Direct Communication Port

      Yes

      Protection Category

      IP55

      Front Bezel

      69 x 69mm

      Body Diameter & Depth

      52 x 31mm

      Warranty

      5 Years


      Product form

       The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours... Read more

      £95.90 Exc. VAT
      £115.08 Inc. VAT
