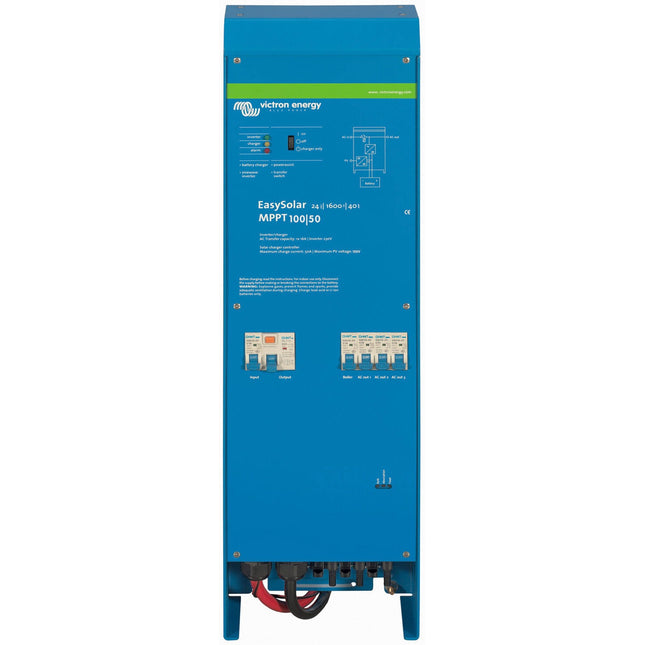

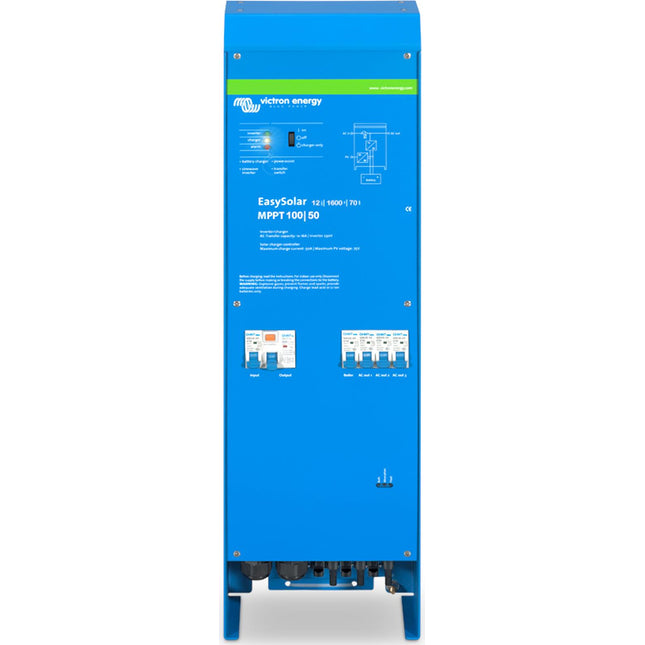

CLICK HERE FOR SPEC SHEETS The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.   Features All-in-one solar power solution The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. The solar charge controller: Blue Solar MPPT 100/50 Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors. The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40 The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset. AC distribution The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available. PowerAssist Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed. Unique solar application software Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.   Brand Victron Energy Manufacturer Part Number CEP241621010 GTIN 8719076021605 Voltage 24V Transfer Switch 16A Continuous Output Power at 25°C 1600VA/1300W Peak power 3000W Charger Current House Battery 40A Battery Temperature Sensor Yes Programmable Relay Yes Ingress Protection IP22 Battery-Connection Battery cables of 1.5 meter Dimensions (Including Terminals) H745 x W214 x D110mm Weight 15Kg Warranty 5 Years

Read more less

CLICK HERE FOR SPEC SHEETS   The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.   Features All-in-one solar power solution The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.   The solar charge controller: Blue Solar MPPT 100/50 Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.   The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40 The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.   AC distribution The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.   PowerAssist Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.   Unique solar application software Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.   Brand Victron Energy Manufacturer Part Number CEP121620000 GTIN 8719076021599 Voltage 12V Transfer Switch 16A Continuous Output Power at 25°C 1600VA/1300W Peak power 3000W Charger Current House Battery 70A Battery Temperature Sensor Yes Programmable Relay Yes Ingress Protection IP22 Battery-Connection Battery cables of 1.5 meter Dimensions (Including Terminals) H745 x W214 x D110mm Weight 15Kg Warranty 5 Years Country of Manufacture China
