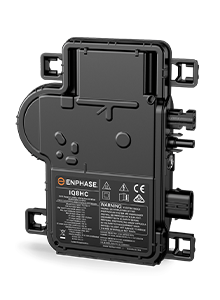

Enphase IQ8HC 54 and 72 cell Microinverter 384 VA peak power MC4

Supplier Code: IQ8HC-72-M-INT

Phases: 1 oder 3 (depending on wiring)

MPP Tracker: 1

Inputs per Tracker: 1

Rated AC power: 384 VA

MPPT Voltage Range: 29.5 - 45 V

Warranty: 25 Years

Technical Specification

Input current: 14 A

Short-circuit current: 25 A

Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled

Supplier Part No:

IQ8HC-72-M-INT

Weight: 1.1 kg

Rated Power: 384 W

Min PPT Voltage: 18 V

Max PPT Voltage: 60 V

DC Startup Voltage: 22 V

DC Shutdown Voltage: 18 V

Max Input Voltage: 60 V

Max DC Power: 560 W

Max AC Power (5 Minutes): 366 W

Surge AC Power (1 Second): 366 W

Max DC Current: 14 A

Max DC Inputs: 1

Has DC Fuses: 0

Connector: MC4

Included Connectors: 0

Euro Efficiency: 97 %

Transformer: HF

MPPT Quantity: 1

Has Integrated DC Switch: No

Warranty: 25 years
