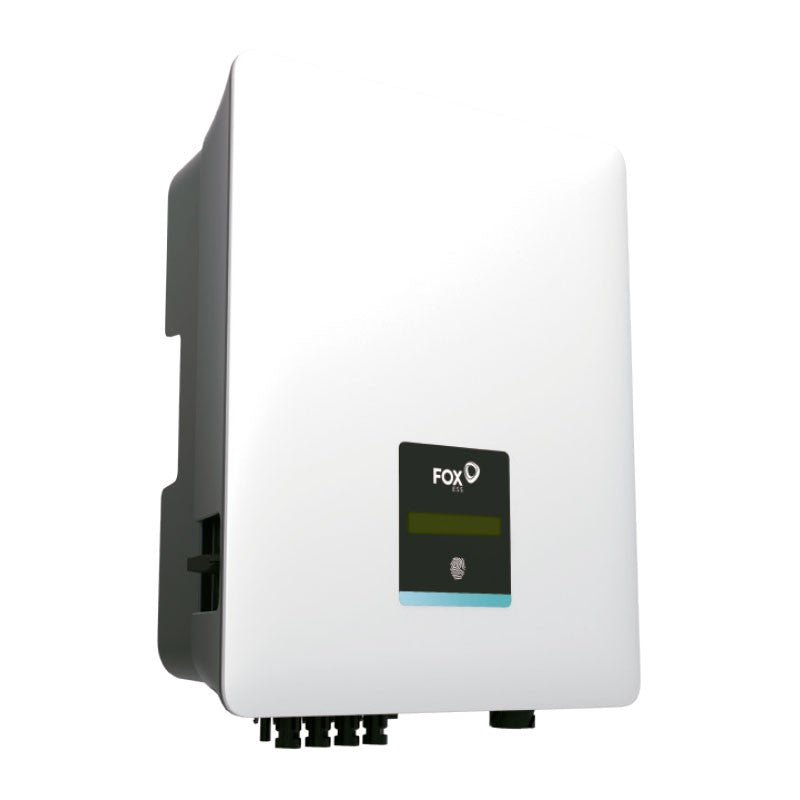

FOX ESS - PV Inverter - T Series - 17.0kW
T17-G3
Dual-MPPT T Series range includes 6.0 - 25.0kW models. The T Series a 3-phase aimed at domestic and small-scale commercial installations.
- High Performance: Low start-up voltage, wide voltage range, 98.6% maximum efficiency.
- Easy Installation: Flexible configuration, plug and play set-up.
- IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring: Monitor your system remotely via smartphone app or web portal.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.
- Supplier Part No: T17
- Weight: 20 kg
- Rated Power: 17,000 W
- Min PPT Voltage: 140 V
- Max PPT Voltage: 1,100 V
- DC Startup Voltage: 140 V
- DC Shutdown Voltage: 1,100 V
- Max Input Voltage: 1,100 V
- Max DC Power: 25,500 W
- Max AC Power (5 Minutes): 17,000 W
- Surge AC Power (1 Second): 18,700 W
- Max DC Current: 28 A
- Max DC Inputs: 4
- Has DC Fuses: 4
- Connector: MC4
- Included Connectors: 4
- Euro Efficiency: 97.8 %
- Transformer: N/A
- MPPT Quantity : 2
- Has Integrated DC Switch:Yes
- Warranty: 5 years
