FE-HV-ECM-4300

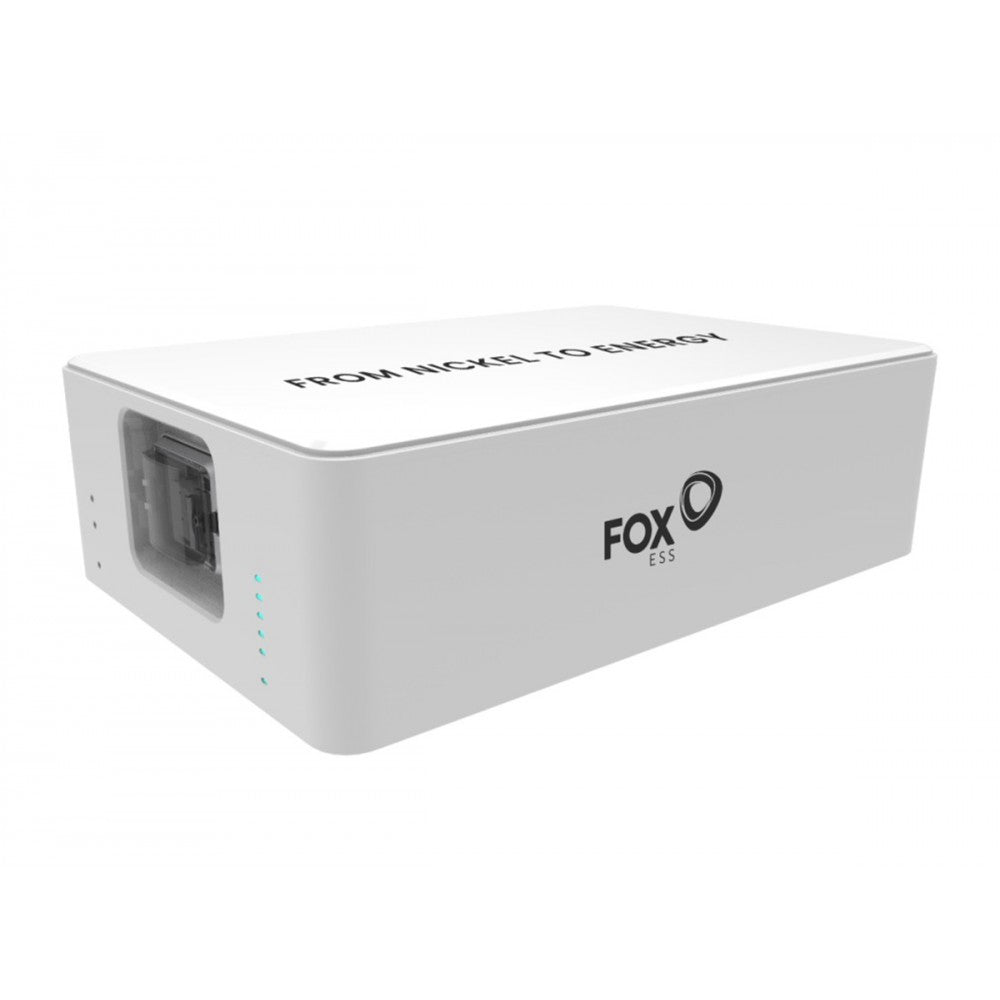

Fox ECS 4.14kWh HV Battery (Master)

Name: Fox ECS 4.14kWh HV Battery (Master)
Brand: Fox ESS
SKU: FE-HV-ECM-4300
Price: 1084.17 GBP
Availability: InStock

ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 29.03 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

£1,084.17

£1,301.00 INC. VAT

Login or register for trade discounts

In stock

Fast shipping

Collection available More info

Overview

4.14kWh Capacity
Scalable to 29.03Wh
90% Depth of Discharge
Wide Temperature Tolerance
Easy Installation
CAN/RS485 Communication
High Voltage

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)

If you are adding battery modules to a pre-existing Energy Cube stack, it’s important that the new batteries are compatible with your original battery modules. Please contact your Technical person via the portal and provide a photograph of the original battery stack to help us determine correct compatibility

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.


Supplier Part No: FE-HV-ECM-4300
Weight: 38.3 kg
Rated Power: 4,300 W
Battery Type: Lithium Ion
Nominal Energy: 4145 Wh
Depth of discharge: 90.00 %
Voltage: 57 V
Continuous Discharge Rate (Normal Use): 2875 W
Maximum Discharge Rate (5 Minutes): 2875 W
Surge Discharge Rate (15 Seconds): 3737 W
Maximum Charge Rate (5 Minutes): 2875 W
