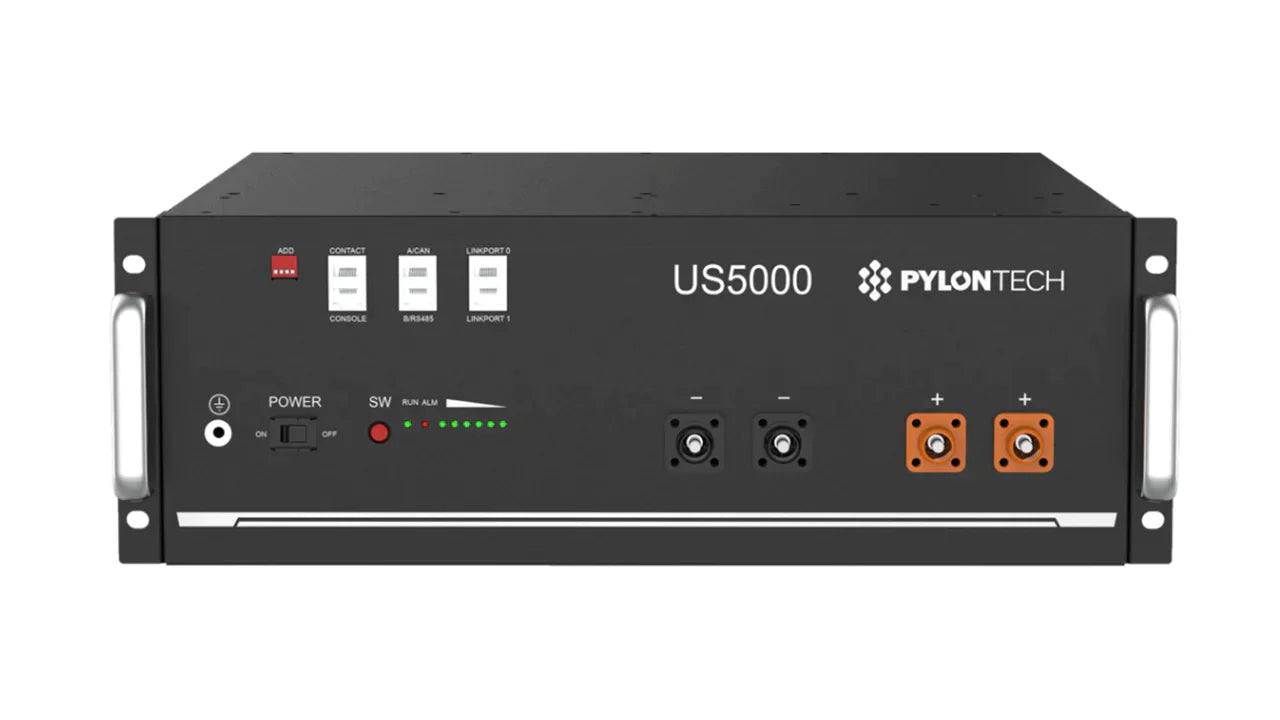

Pylontech US5000-1C 4.8kWh Li-Ion Solar Battery 48V (Latest Model)

Product Features

• Modular design for ease of expansion
• Higher usable capacity resulting in less battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible
• Comes with a 7-year warranty extendable to 10 if registered online, using the link below.
• Long cycle life and superior performance
• Compatible with tier 1 inverter brands

To get the full 10 year warranty (3 years extra) you have to register here: http://en.pylontech.com.cn/service/support.

Supplier Part No:

US5000 1C

Weight:

40.4 kg

Battery Type:

Lithium Ion

Nominal Energy:

4800 Wh

Depth of discharge:

95.00 %

Voltage:

48 V

Continuous Discharge Rate (Normal Use):

2400 W

Maximum Discharge Rate (5 Minutes):

4800 W

Surge Discharge Rate (15 Seconds):

5808 W

Maximum Charge Rate (5 Minutes):

4800 W
