S6-EH3P30K-H-EU

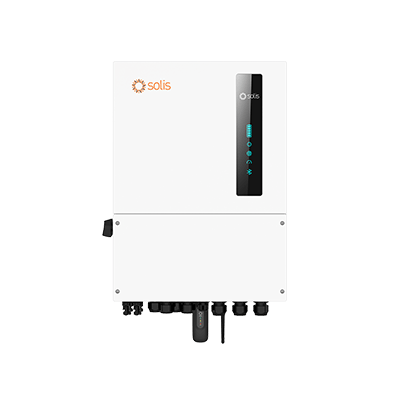

Solis S6 30kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)

Name: Solis S6 30kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Brand: Solis
SKU: S6-EH3P30K-H-EU
Price: 2463.17 GBP
Availability: OutOfStock

Solis S6 30kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN), High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(30-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

£2,463.17

£2,955.80 INC. VAT

Login or register for trade discounts

Out of stock

Fast shipping

Collection available More info

Overview

Solis S6 30kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN), High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(30-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Technical Features

4 Integrated MPPTs and 8 strings with string current capacity of up to 20A
Backup port supports 1.6 times/2 seconds overload
Supports maximum 96kW usable PV input power
Enables peak shaving control in both "self-use" and "generator" modes
Compatible with a wide voltage range to accommodate various batteries
Increased battery protection and operation features to extend battery life
Allows parallel operation of up to 6 units for both on-grid and off-grid application
Generator connectivity with multiple input methods and automatic generator On/Off control
Maximum charge/discharge current of up to 140A/70A+70A on two independently controlled battery ports
