Victron

Features Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. Brand Victron Energy Manufacturer Part Number PIN482500000 GTIN 8719076047940 Voltage 48V Cont. output power at 25ºC 5000VA Peak power 10000W Parallel and 3-phase operation No Programmable Relay Yes Max. efficiency 96% Battery-Connection M8 Bolts VE.Direct Communication Port For remote monitoring and system integration Dimensions H555 x W295 x D160mm Weight 28Kg Warranty 5 Years

Read more less

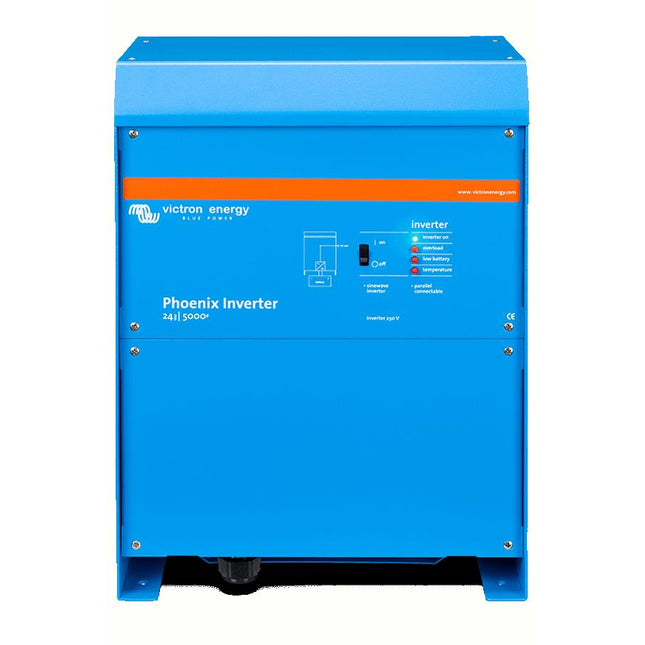

Features SinusMax – Superior engineering Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. Extra start-up power A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances. Virtually unlimited power thanks to parallel and 3-phase operation capability Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.  To transfer the load to another AC source: the automatic transfer switch If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds). Computer interface All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems. Brand Victron Energy Manufacturer Part Number PIN485020000 Voltage 48 VA 5000 Peak Power (W) 10000 Max Efficiency 95% Programmable Relay Yes IP Rating IP21 Dimensions (Including Terminals) H444 x W328 x D240mm Weight (kg) 30 Warranty 5 Years

Read more less

The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port, for connection to a GX device for system monitoring.  Features Light weight, efficient and quiet Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation. Display and Bluetooth The display reads battery and inverter parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect. VE.Can and VE.Direct port For connection to a GX device for system monitoring, data logging, and remote firmware updates. I/O Connections Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS. Brand Victron Energy Manufacturer Part Number PIN482600000 GTIN 8719076046059 Voltage 48V Cont. Output Power at 25°C 6000VA Peak Power 9kW for 3 seconds Output AC Voltage 230V Protection Category IP21 Bluetooth Enabled Yes Dimensions H425 x W440 x D125mm Weight 11Kg Warranty 5 Years

Read more less

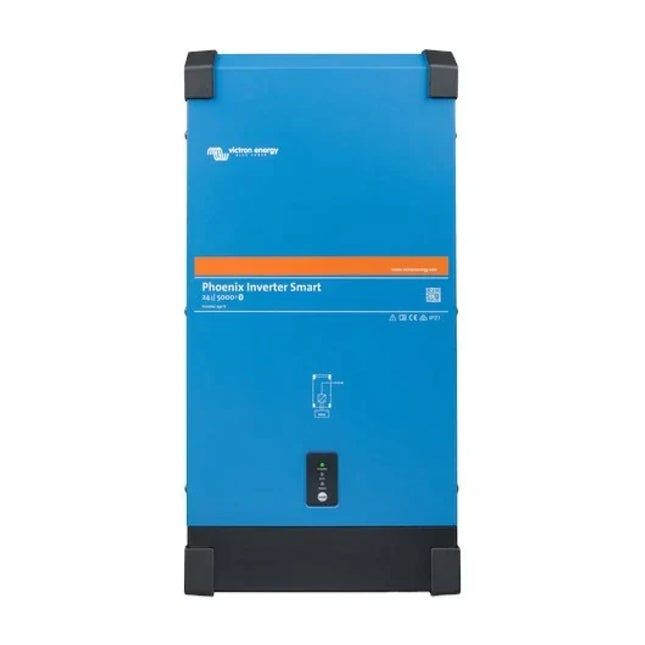

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect. Features of the Phoenix 24/5000 Smart Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.  CLICK HERE FOR SPEC SHEET Brand Victron Energy Manufacturer Part Number PIN242501000 GTIN 8719076058281 Voltage 24V Cont. Output Power at 25°C 5000VA Output AC Voltage 230V Efficiency 95% Protection Category IP21 Dimensions H595 x W295 x D160mm Weight 29Kg Warranty 5 Years Bluetooth Enabled Yes Country of Manufacture China

Read more less

Features Extra start-up power A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances. Virtually unlimited power thanks to parallel and 3-phase operation capability Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.  To transfer the load to another AC source: the automatic transfer switch If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds). Computer interface All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems. Brand Victron Energy Manufacturer Part Number PIN245020000 Voltage 24 VA 5000 Peak Power (W) 10000 Max Efficiency 94% Programmable Relay Yes IP Rating IP21 Dimensions (Including Terminals) H444 x W328 x D240mm Weight (kg) 30 Warranty 5 Years

Read more less

The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.   Features Off-Grid solar inverter The Inverter RS Smart Solar 48/6000 is a 48V 6kVA Inverter with 450VDC 4kWp PV input. It is used in off-grid solar applications where AC power is required. Combination of an inverter, bi-directional DC-DC converter and MPPT The inverter produces a perfect sine wave, able to supply high powered appliances. It is supplied by a bi-directional DC-DC converter, that can either charge the battery when excess solar power is available or convert from the battery when it is needed. Wide MPPT voltage range 80 – 450VDC, with a 120VDC PV startup voltage. Light weight, efficient and quiet Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation. Display and Bluetooth The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect. VE.Can and VE.Direct port For connection to a GX device for system monitoring, data logging, and remote firmware updates. Built in PV isolator Both parallel PV strings connected to the MC4 plugs can be safely isolated with the large built-in switch on the bottom of the unit. I/O Connections Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS. Brand Victron Energy Manufacturer Part Number PIN482601000 GTIN 8719076048176 DC Input voltage range 38-64V Continuous Output Power at 25°C Increases linearly from 4800W at 46VDC to 5300W at 52VDC Continuous output power at 40°C 4500W Peak power 9kW for 3 seconds Zero load power 20W Maximum DC voltage 450V Nominal DC voltage 300V Start-up voltage 120V MPPT operating voltage range 80-450V Charge voltage absorption (V DC) 57.6V Charge voltage float (V DC) 55.2V Maximum charge current 100A Battery Temperature Sensor Yes Parallel and 3-phase operation No Programmable Relay Yes Data Communications Ports VE.Direct port and VE.Can port Remote on-off Yes Protection Category IP22 Battery-Connection M8 Bolts Dimensions H425 x W440 x D125mm Weight 11Kg Warranty 5 Years

Read more less

  Features Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. Brand Victron Energy Manufacturer Part Number PIN242500000 GTIN 8719076047933 Voltage 24V Cont. output power at 25ºC 5000VA Peak power 10000W Parallel and 3-phase operation No VE.Direct Communication Port For remote monitoring and system integration Programmable Relay Yes Max. efficiency 95% Remote on-off Yes Battery-Connection 2+2 M8 bolts 230 V AC-connection Screw terminals Dimensions H595 x W295 x D160mm Weight 29Kg Warranty 5 Years

Read more less
