Features
Control Your Charger Remotely

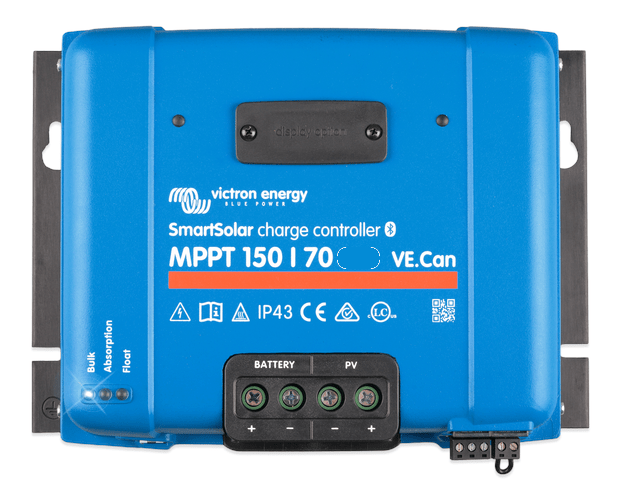

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units
The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth
A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV 712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
VE.Can: the multiple controller solution
Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed to trip on an alarm, or other events.
Optional: SmartSolar pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
SCC115070511 |
| GTIN |
8719076051114 |
| Battery Voltage |
12/24/48V Auto Select (36V: manual) |
| Rated Charge Current |
70A |
| Nominal PV Power, 12V |
1000W |
| Nominal PV Power, 24V |
2000W |
| Max. PV Short Circuit Current |
50A (max 30A per MC4 conn.) |
| Maximum PV Open Circuit Voltage |
150V absolute maximum coldest conditions 145V start-up and operating maximum |
| Efficiency |
98% |
| Charge Algorithm |
multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Data Communication Port |
VE.Can, VE.Direct and Bluetooth |
| Protection Category |
IP43 (electronic components), IP22 (connection area) |
| Dimensions |
H215 x W250 x D95mm |
| Weight |
3Kg |
| Warranty |
5 Years |
