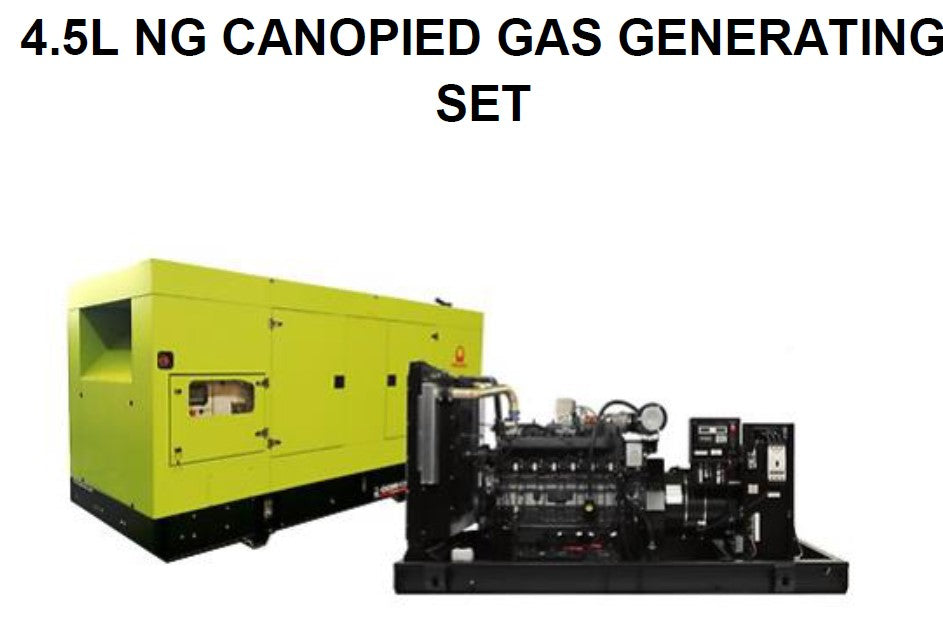

50KVa Gas Generator (BioMethane Rich Burn)

Description

Download Spec Sheet HERE

https://cdn.shopify.com/s/files/1/0619/6428/8220/files/GGW50G-2023-10-13-09-12-10.pdf?v=1697410189

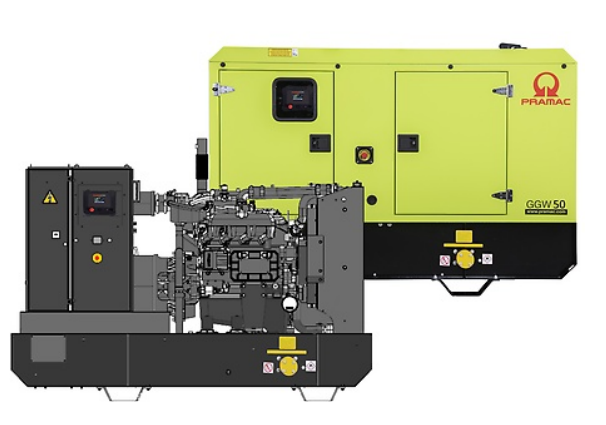

PRAMAC Industrial gaseous engine-driven generator, model GGW50G, consisting of the following features and accessories:

  • Stationary Emergency-Standby ESP rating (ISO-8528-1)
    • 50 kVA / 40 kW Rating, wired for 231 / 400 VAC Three phase, 50 Hz.
  • Prime Power rating (ISO-8528-1)
    • 45 kVA / 36 kW Rating, wired for 231 / 400 VAC Three phase, 50 Hz.
  • Mecc-Alte alternator
  • Auxiliary Winding Excitation
  • Generac engine model G4.5
    • Naturally Aspirated
    • 4 cylinder.
    • 4.5L Displacement
    • Dual gas shutoff solenoid actuated valves
    • Electronic Air/Fuel regulation
  • Sound-Attenuated Acoustic Enclosure, Steel
    • Self supporting inner structure
    • Galvanized sheet metal robust construction
    • Lifting points from the top
    • Green PRAMAC Baked-On Powder Coat Finish
  • Power Zone Pro Digital Control Panel for Single Generators
    • Meets NFPA 99 and 110 requirements
    • Temp Range -40 to 70 degrees C
    • Humidity 2 – 95% (Non Condensing)
    • UL6200
    • C-ETL-US
    • CE
    • FCC
    • IEC801 (Radiated Emissions, Susceptibility, and Surge Immunity)
    • 4.3” Resistive Color Touchscreen
      • Built-in Wi-Fi, Bluetooth, and Webserver (via Power Zone Connectivity Server)
      • IP65 (front)
      • Auto/Manual/Off key switch, Alarm Indication, Not in Auto Indication, audible alarm, emergency stop switch
    • Dual Core Digital Microprocessor
      • RS485, Ethernet and CANbus ports
    • All engine sensors are 4-20ma for minimal interference
      • Sensors: Oil Pressure, optional Oil Temp, Coolant Temp and Level, Fuel Level/Pressure (where applicable), Engine Speed, DC Battery Voltage, Run-time Hours, Generator Voltages, Amps, Frequency, Power, Power Factor
      • Alarm Status: Low or High AC Voltage, Low or High Battery Voltage, Low or High Frequency, Pre-low or Low Oil Pressure, Pre-high or High Oil Temp (optional), Low Water Level and Temp, Pre-high or High Engine Temp, High, Low, and Critical-low Fuel Level/Pressure (where applicable), Overcrank, Over and Under Speed, Unit Not in Automatic
      • Programmable I/O
      • Built-in PLC for special applications
    • Engine function monitoring and control:
      • Full range standby operation; programmable auto crank, Emergency Stop, Auto-Off-Manual switch
      • Isochronous Governor
        • 0.25% digital frequency regulation with: soft-start ramping - adjustable, gain - adjustable, overshoot limit - adjustable
      • 3 Phase RMS Voltage Sensing
        • +/-0.5% digital voltage regulation with: soft-start voltage ramping - adjustable, loss of sensing protection - adjustable, negative power limit - adjustable, Hi/Lo voltage limit - adjustable, V/F slope and gain - adjustable, fault protection
    • Service reminders, trending, fault history (alarm log)
    • I2T function for full generator protection
    • Selectable low-speed exercise
    • 2-wire start controls for any 2-wire transfer switch
  • 3 Owner's Manuals
  • 2 Years Standard Warranty or 1000 running hours whichever comes sooner.
  • 4 pole circuit breakers.
  • Coolant Heater, 1500W, 240VAC
  • Exhaust system with 3-way catalyst optimized for ultra-low emissions (NOx < 250 mg /Nm3 @5%O2)



Product form

Download Spec Sheet HERE https://cdn.shopify.com/s/files/1/0619/6428/8220/files/GGW50G-2023-10-13-09-12-10.pdf?v=1697410189 PRAMAC Industrial gaseous engine-driven generator, model GGW50G, consisting of the following features and accessories: Stationary... Read more

£25,000.00 Exc. VAT
