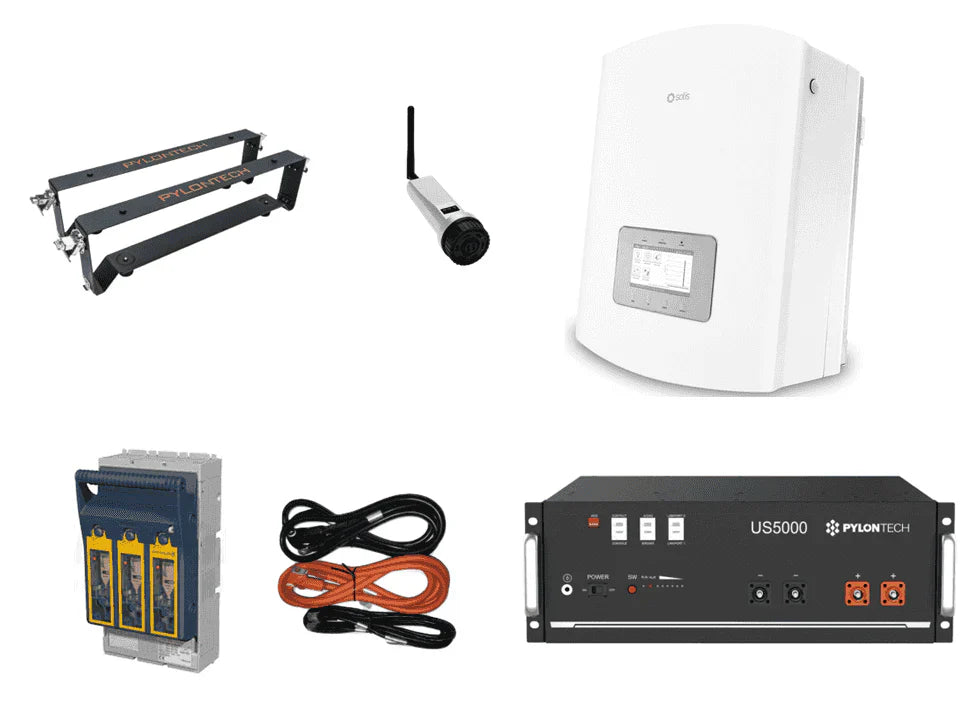

An updated version of the US5000 battery from Pylontech. The US5000-1C is a 48V battery with incredible features to provide a competitive edge in the market.
The US5000-1C offers upgraded firmware and increased operation logic from 0.8C to 1.0C.
Product Features
- Modular design for ease of expansion
- Higher usable capacity resulting in less battery modules installed
- Usable capacity 4 560Wh
- Parallel Capability of up to 16 units
- Allows for large installation of up to 72.96kWh with no LV Hub
- Intelligent BMS protecting battery cells
- 95% DoD with more usable capacity
- RS485 and CAN compatible
- Comes with a 7-year warranty extendable to 10 if registered online, using the link below.
- Long cycle life and superior performance
- Compatible with tier 1 inverter brands
To get the full 10 year warranty (3 years extra) you have to register here: http://en.pylontech.com.cn/service/support.
- Supplier Part No:
- US5000 1C
- Weight:
- 40.4 kg
- Battery Type:
- Lithium Ion
- Nominal Energy:
- 4800 Wh
- Depth of discharge:
- 95.00 %
- Voltage:
- 48 V
- Continuous Discharge Rate (Normal Use):
- 2400 W
- Maximum Discharge Rate (5 Minutes):
- 4800 W
- Surge Discharge Rate (15 Seconds):
- 5808 W
- Maximum Charge Rate (5 Minutes):
- 4800 W
