EcoFlow PowerOcean DC Fit Converter

Safety and Power Independence in Every Charge

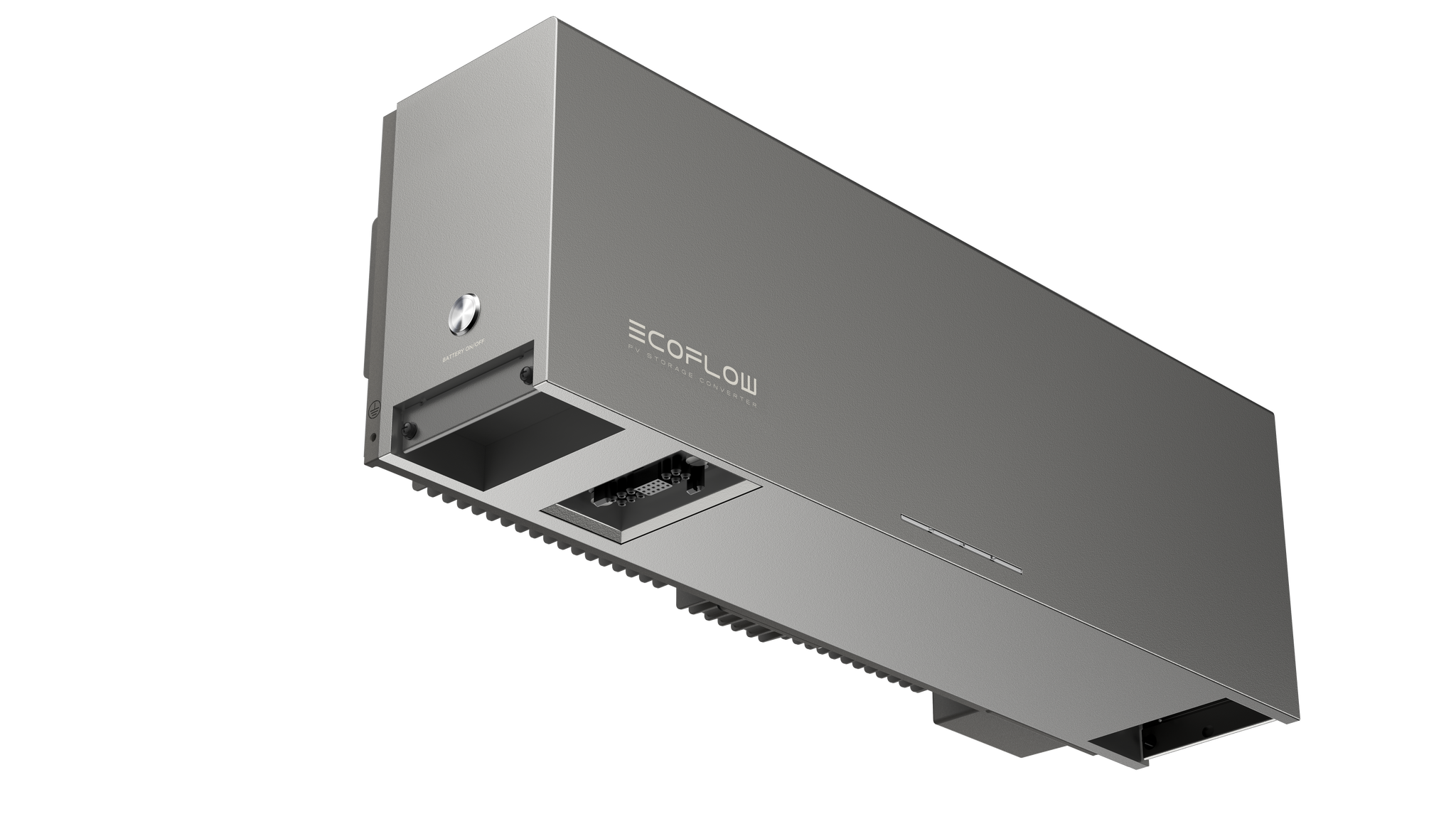

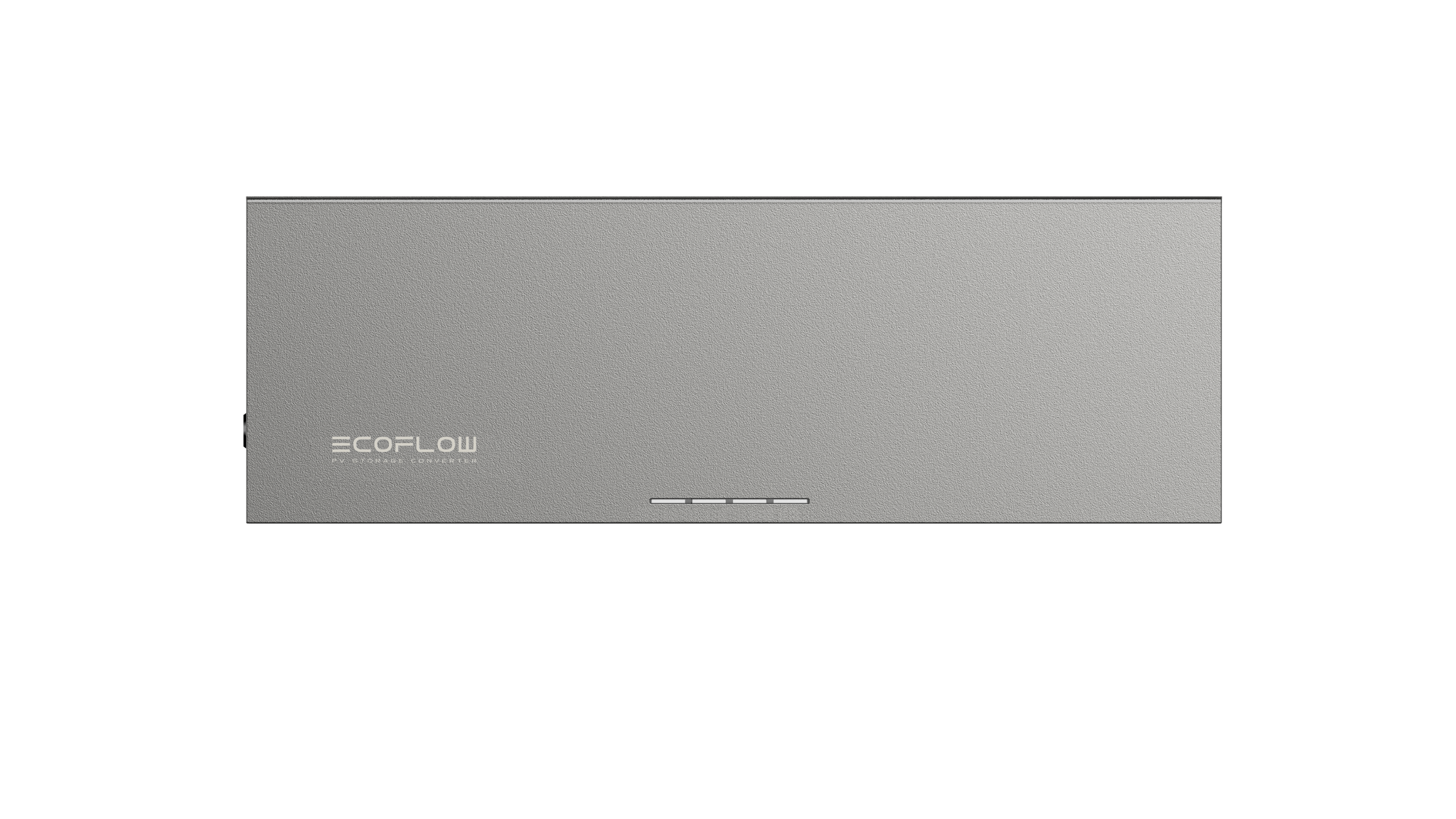

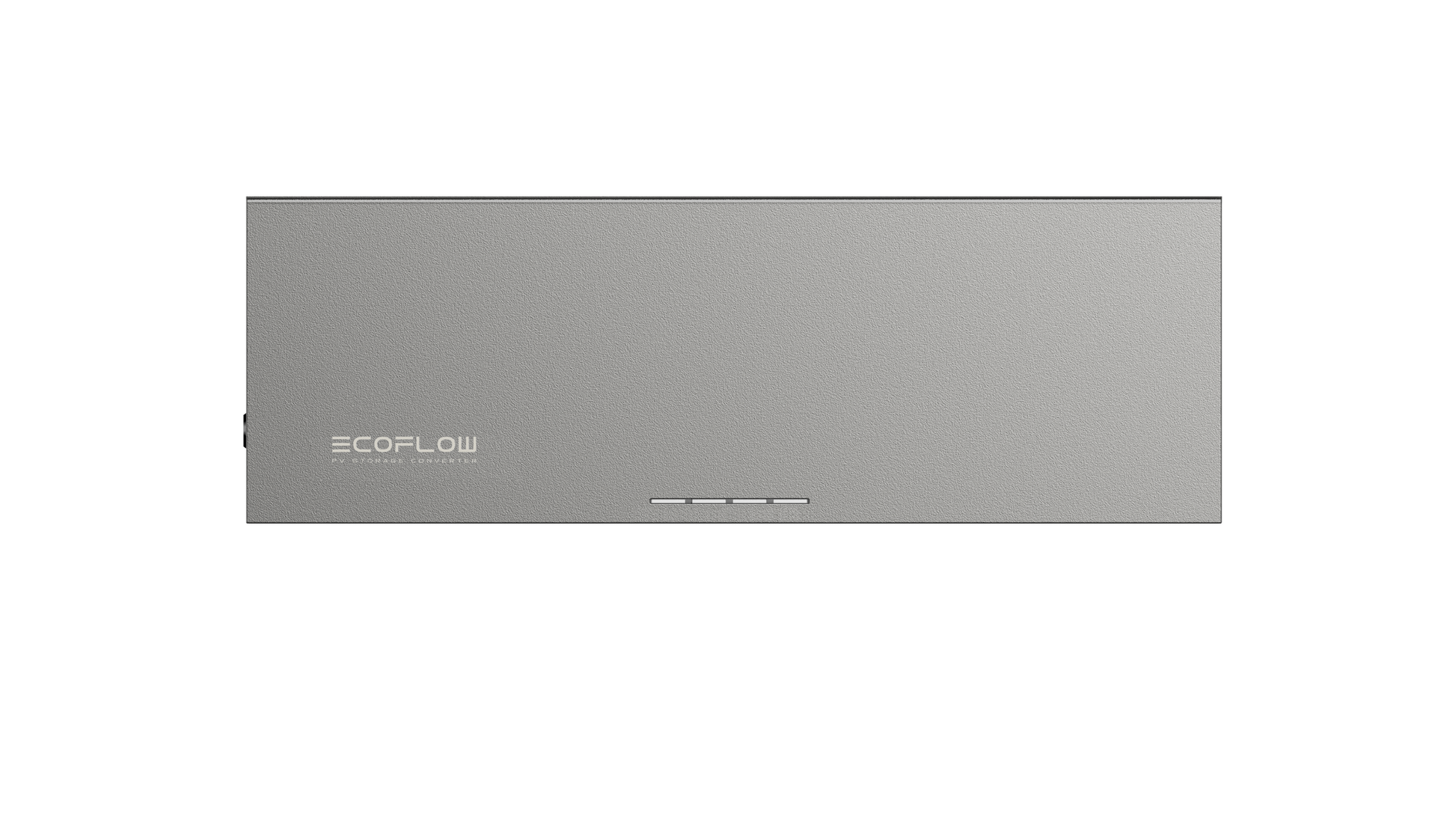

This Product is The Ecoflow PowerOcean DC Fit Converter

The EcoFlow PowerOcean redefines home energy storage with an advanced safety system, LFP battery tech, active fire protection module, and an IP65-certified design. Expandable up to 15kWh, it offers over 6000 charge cycles and a 15-year warranty— a secure, scalable, and future-proof power investment for your home.

The EcoFlow 5kW DC Converter is a crucial part of the PowerOcean DC Fit Retrofit Battery Storage solution.

This unique PV-coupled retrofit battery solution is extremely easy to set up and smoothly integrates into an existing solar system on the PV side. The system eliminates the need to add a new storage inverter or replace an existing solar inverter.

TECHNICAL SPECIFICATION

• Max. input charging power: 5kW (2.5kW per string)
• Max. input charging current: 12A per string
• Max. input voltage (absolute maximum): 1000V d.c.
• Operating voltage range: 150-800V d.c.
• Supported solar inverter type: Single phase / Three phase
• Bypass power: 15kW per string
• Max. output current: 20A per string
• Max. output voltage: 1000V d.c.
• Max. output discharging power: 5kW (2.5kW per string)
• IP rating: IP65

Flow meter included.
