F-UC-B

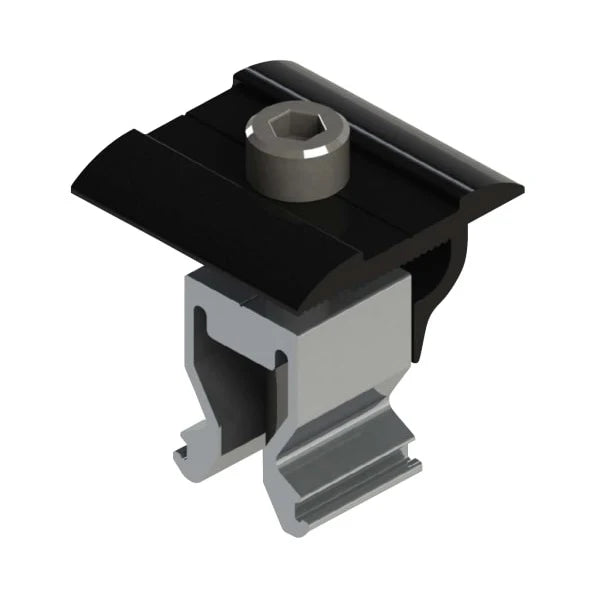

Fastensol Universal Clamp (for 30-46mm panels) - Black

Name: Fastensol Universal Clamp (for 30-46mm panels) - Black
Brand: FASTENSOL
SKU: F-UC-B
Price: 1.38 GBP
Availability: InStock

Mounting solar panels just got even simpler with this universal panel clamp from Fastensol. The clamp is spring loaded meaning that it is compatible with any panel from 30-46mm thickness. Due to it's clever design, it is also both a mid and end clamp in one - simply rotate the head 90 degrees either way to swap between either.

£1.38

£1.66 INC. VAT

Login or register for trade discounts

In stock

Fast shipping

Collection available More info

Overview

Mounting solar panels just got even simpler with this universal panel clamp from Fastensol. The clamp is spring loaded meaning that it is compatible with any panel from 30-46mm thickness. Due to it's clever design, it is also both a mid and end clamp in one - simply rotate the head 90 degrees either way to swap between either.

80x to a small carton, 320x to a large carton.

Key features:

Universal clamp designed for 30-46mm solar panels
Constructed from aluminium
Suitable for flat or pitched roofs with a maximum slope of 60°
Compatible with tiled, slate or metal roofs
Wind load: up to 60m/s
Snow load: 2.0kN/m²
Maximum building height: 20m
Dimensions: 10mm (H) x 40mm (L) x 45mm (W)
Weight: 0.06kg
12-year material warranty and five-year warranty on finish
