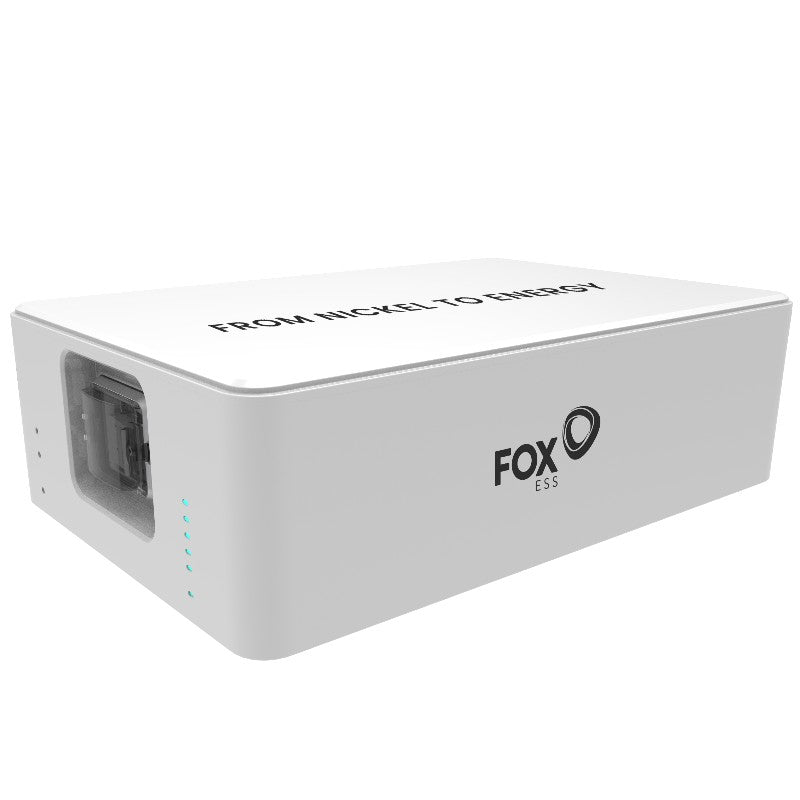

Fox ECS - High Voltage Battery (Master)
ECM4800-2H
ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 33.24 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
- 4.74kWh Capacity
- Scalable to 33.24kWh
- 90% Depth of Discharge
- Wide Temperature Tolerence
- Easy Installation
- CAN/RS485 Communication
- High Voltage
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)
To work with the H3/AC3 range of inverters, there is a minimum battery stack requirement of 5 so that it is within the voltage range.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Supplier Part No: Energy Cube: CM4800
Weight: 41 kg
Battery Type: Lithium Ion
Nominal Energy: 4660 Wh
Depth of discharge: 90.00 %
Voltage: V
Continuous Discharge Rate (Normal Use): 2330 W
Maximum Discharge Rate (5 Minutes): 4660 W
Surge Discharge Rate (15 Seconds): 5785 W
Maximum Charge Rate (5 Minutes): 4660 W
