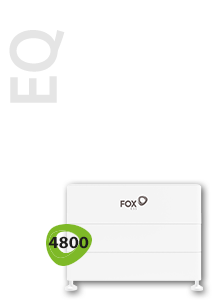

Fox EQ 4.66kWh - Stack of 3 (13.98kWh Useable Storage) Incl. Master

EQ4800-L3

• 4.66kWh capacity
• Scalable to 41.94 kWh
• 90% Depth of Discharge
• Large temperature tolerance
• Easy installation
• CAN communication
• High voltage

The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.

Weight: 122.5kg

Dimensions (Width, Hight, Depth): 570mm x 524mm x 380mm

Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard.

This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.

Weight: 125 kg

Battery Type: Lithium Ion

Nominal Energy: 13980 Wh

Depth of discharge: 90.00 %

Voltage: 134 V

Continuous Discharge Rate (Normal Use): 2240 W

Maximum Discharge Rate (5 Minutes): 4480 W

Surge Discharge Rate (15 Seconds): 5785 W

Maximum Charge Rate (5 Minutes): 4480 W
