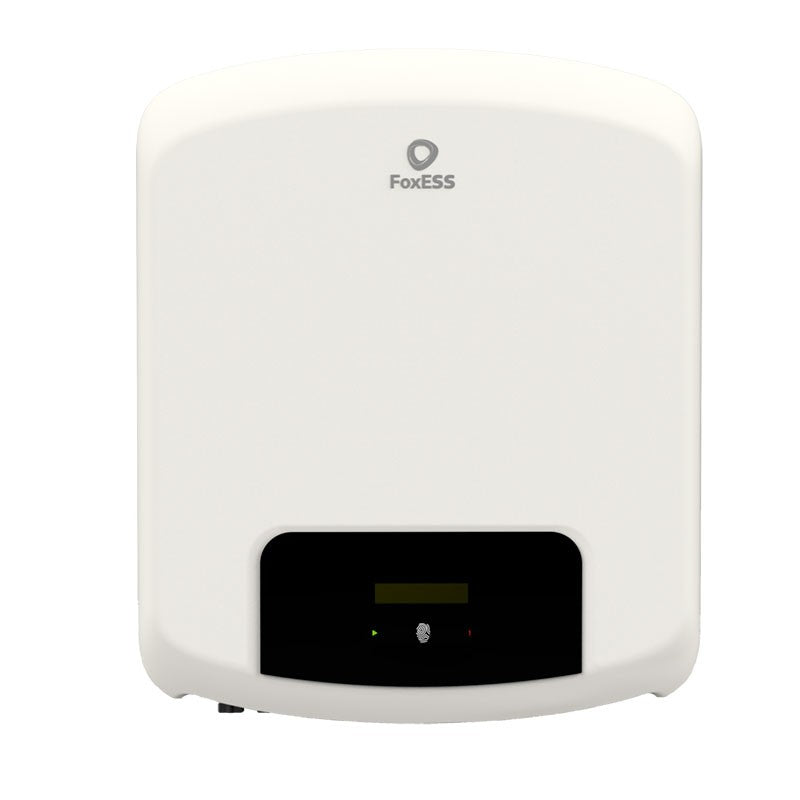

FOX ESS - PV Inverter - F Series - 6kW
F6000
Our Dual-MPPT F Series range includes 3.0 - 6.0kW models. The F Series is IP65 rated and battery ready for easy upgrade when paired with a Fox ESS charge controller.
- High Performance: Low start-up voltage, wide voltage range, 97.4% maximum efficiency.
- Easy Installation: Flexible configuration, plug and play set-up.
- IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring: Monitor your system remotely via smartphone app or web portal.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.
- Supplier Part No: F6000
- Weight: 15.5 kg
- Rated Power: 6,000 W
- Min PPT Voltage: 120 V
- Max PPT Voltage: 600 V
- DC Startup Voltage: 120 V
- DC Shutdown Voltage: 601 V
- Max Input Voltage: 600 V
- Max DC Power: 9,000 W
- Max AC Power (5 Minutes): 6,000 W
- Surge AC Power (1 Second): 0 W
- Max DC Current: 25 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 0
- Euro Efficiency: 96.8 %
- Transformer: HF
- MPPT Quantity : 2
- Has Integrated DC Switch: Yes
- Warranty: 5 years
