The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.
CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).
A meter will be required for >30m distance between inverter and incoming power connection point.
FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

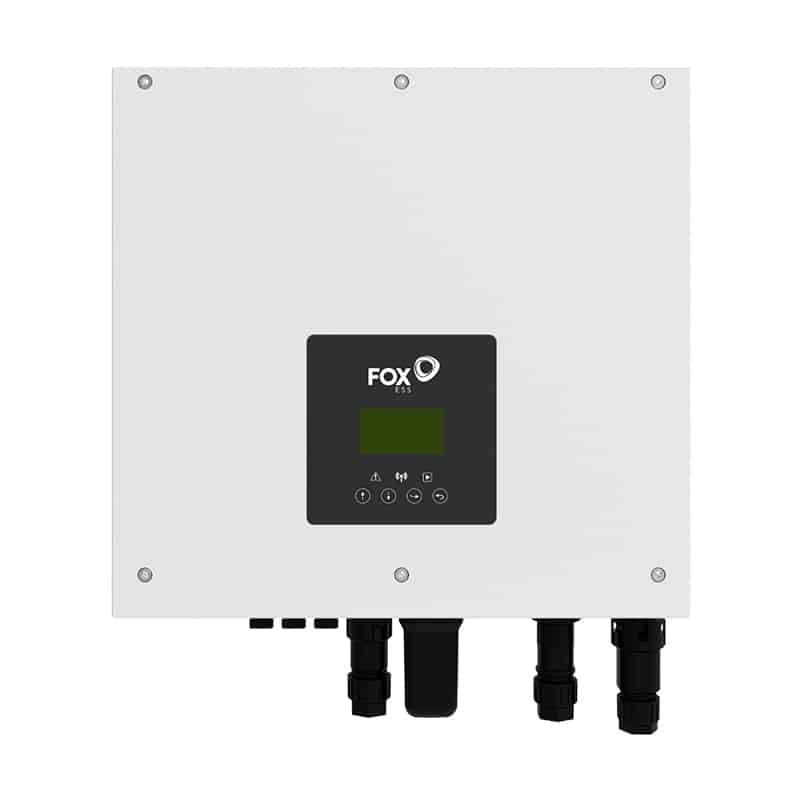

- Supplier Part No: FE-H1-3.7-G2
- Weight: 22 kg
- Rated Power: 3,680 W
- Min PPT Voltage: 80 V
- Max PPT Voltage: 550 V
- DC Startup Voltage: 75 V
- DC Shutdown Voltage: 600 V
- Max Input Voltage: 600 V
- Max DC Power: 5,500 W
- Max AC Power (5 Minutes): 3,680 W
- Surge AC Power (1 Second): 4,400 W
- Max DC Current: 32 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 4
- Euro Efficiency: 95.7 %
- Transformer: None
- MPPT Quantity : 2
- Has Integrated DC Switch: Yes
- Warranty: 5 years
