GIV-3HY-20.0-HV

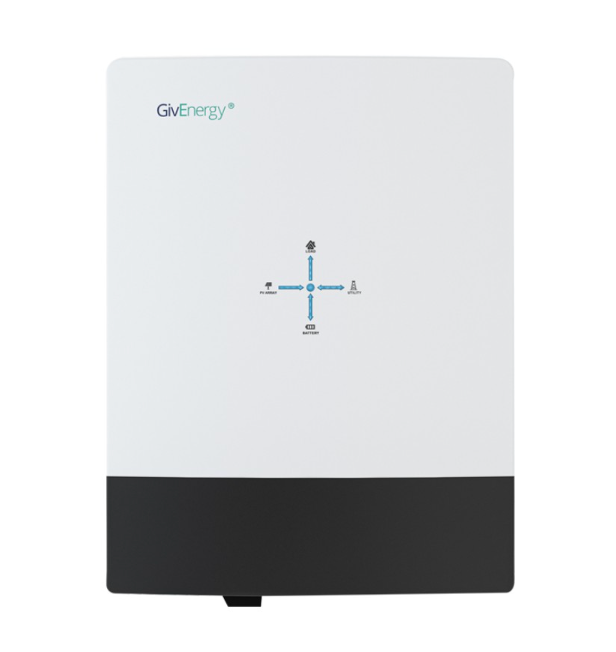

GivEnergy 20kW 3ph Hybrid PV Battery Inverter
Product form
Regular price
£2,080.65
Regular price
Sale price
£2,080.65
Unit price
/
£2,496.78 INC. VAT
In stock
Fast shipping
Collection available More info
Overview
The GivEnergy Hybrid inverter is a DC-coupled storage solution which allows you to seemlessly integrate battery storage into PV systems.
The Givenergy hybrid inverter offers all of the benefits while benefiting from a cleaner design discretely enclosing the connection ports.
Additionally, it will minimise import by discharging to meet demand in the property with a discharge rate of up to 20kW.
- Inbuilt WiFi and LAN: Includes in-built WiFi and LAN for a hard-wired network connection.
- Higher Charge/Discharge Rate: High efficiency, high battery discharge rates of up to 20kW.
- Flexible Rate Tariff: Charge the battery off peak where its cleaner, greener and less costly, then discharge the battery during peak times for maximum saving.
- 12 Year Warranty: Supplied with a full manufacturers warranty. GivEnergy's UK team are on hand to help you should any issues arise.
Installers must now offer an SPD to the homeowner for them to decide whether they would like one installed. Giv inverters do not come with an SPD inbuilt which means that installers will need to offer their own.
AC attributes
Max Output Power:
20.0kW
Max Output Current:
29A
Number of phases:
3
DC attributes
Max PV power
30.0kW
Max Isc
37.5A
Max I (per string)
Max voltage
Max voltage
30A
1000V
1000V
Start up voltage
No. of MPPTs
MPPT Range
No. of MPPTs
MPPT Range
200V
2
200-850V
2
200-850V
Battery
Battery type
LiFePO4
Battery voltage range
200-800V
Charge / discharge current
50A / 50A
Max. Charge/Discharge
20000W / 20000W
Backup Terminal Parameters (AC)
Nominal AC output power
20000W
Nominal voltage
400Vac
Max. output current
29A
Automatic switch time
10ms
System
MPPT efficiency
99.9%
Charge / discharge efficiency
97.5% / 97%
IP rating
IP65
Weight
40.4kg
Dimensions
658*214*480mm
Key features
In-built WiFi and LAN for internet connectivity.Backup for power cuts with 20ms automatic switch time.12 year warranty* when commissioned online by a certified GivEnergy installer.
