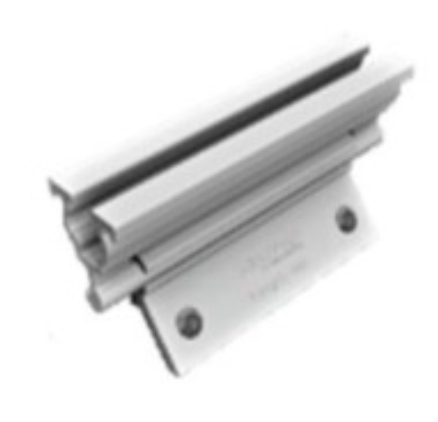

This is a new version of the popular trapezoidal fastener ClampFit-H for landscape modules. The new fastener uses standard module clamps, which makes the different sizes redundant and provides a classical “one fits all” solution for this extremely cost effective fastener.
Works with standard Schletter Rapid2 + and Rapid16 module clamps. The system is suitable for all trapezoidal sheets whose sides are at least 22 mm high and from 8 ° to max. 45 ° are inclined
System components: aluminium
Screws: stainless steel
Seal: EPDM
Screws must be ordered separately as needed (2 pieces for each ClampFit)
Please note typically this system will use 4 fixing points per module. At high wind or snow loads or with large modules it can might be required to use more fixing points.
Keywords: Schletter, PV Mounting, Roof Anchor- Trapezoidal
Screws are not included. Please use with 2 x SLT-943000-360
screws per Schletter ClampFit Fastner piece.
The Schletter ClampFit Fasteners are for our rail-less solutions on IBR/Trapezoidal roofs for panels that are Landscape orientated.
- Supplier Part No: 130004-200
- Weight: 0.12 kg
- PV Light: R2+
