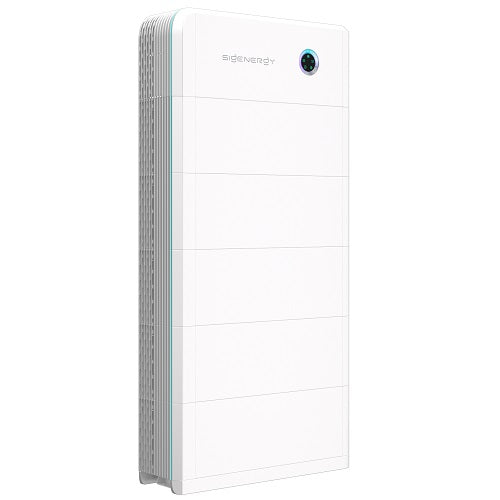

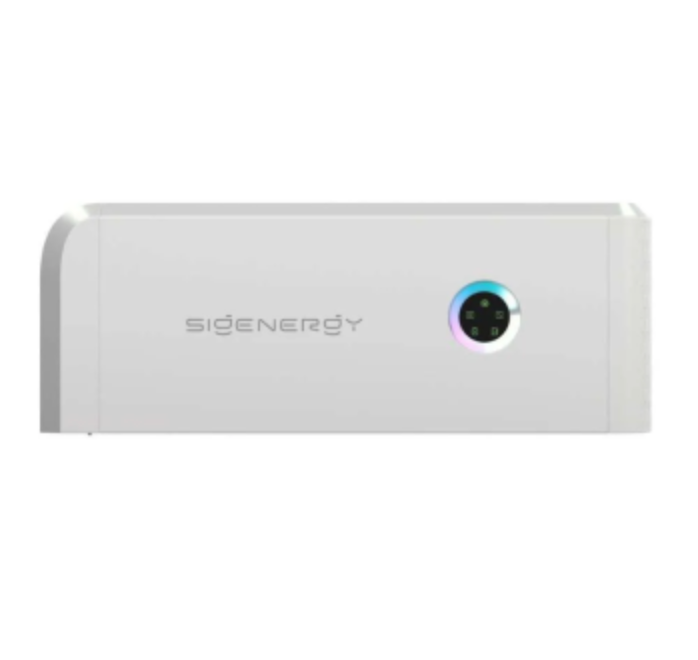

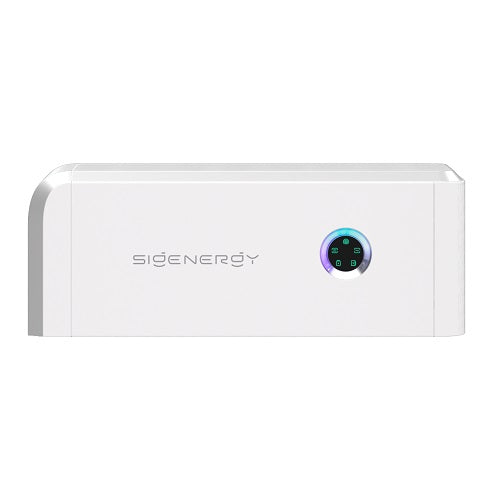

Sigenergy Sigenstor Energy Controller Single Phase - 3.6 kW
Sigenergy is leading a new way of producing, storing, transferring, and consuming home energy. They provide a genuine all-in-one solar energy storage system, SigenStor. Its unique 5-in-One modular design integrates Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one intelligent home energy system. Simple, robust and versatile, it will be a great addition to your home.
- 3.0 - 6.0 kW Single Phase
- EMS inside for precise control
- DC ground-fault protection
- Multi-source black start
- On & off-grid compatibility
- DC/AC ratio up to 2
- IP66 system protection rating
- Supplier Part No: SigenStor EC 3.6 SP
- Weight: 18 kg
- Rated Power: 3,600 W
- Min PPT Voltage: 50 V
- Max PPT Voltage: 550 V
- DC Startup Voltage: 100 V
- DC Shutdown Voltage: 600 V
- Max Input Voltage: 600 V
- Max DC Power: 7,360 W
- Max AC Power (5 Minutes): 3,680 W
- Surge AC Power (1 Second): 3,680 W
- Max DC Current: 32 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 4
- Euro Efficiency: 97 %
- Transformer: None
- MPPT Quantity : 2
- Has Integrated DC Switch: Yes
- Warranty: 10 years
