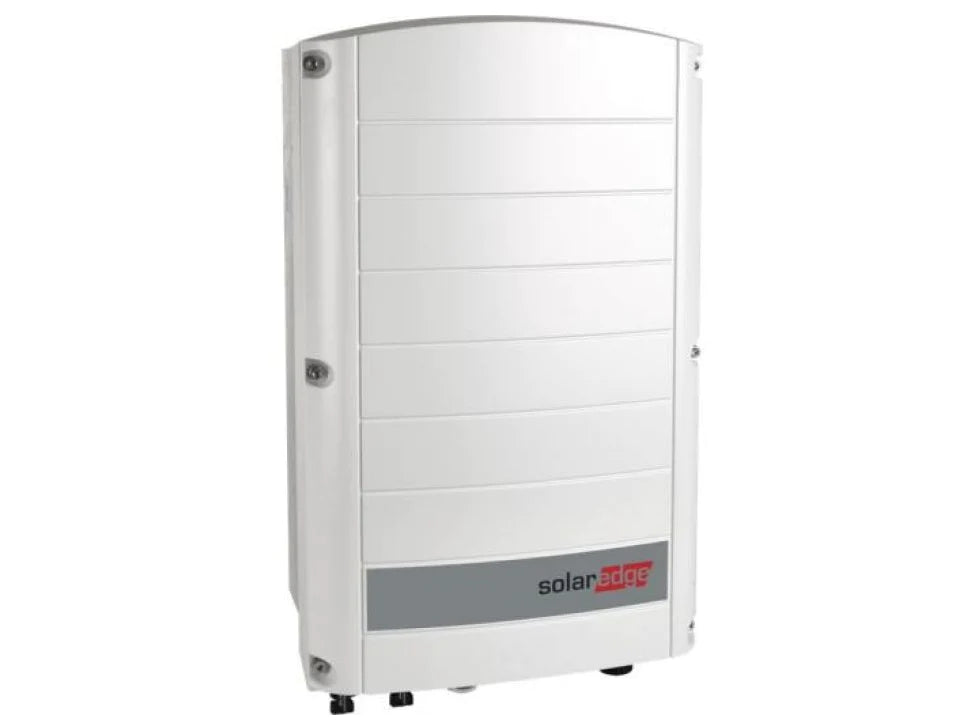

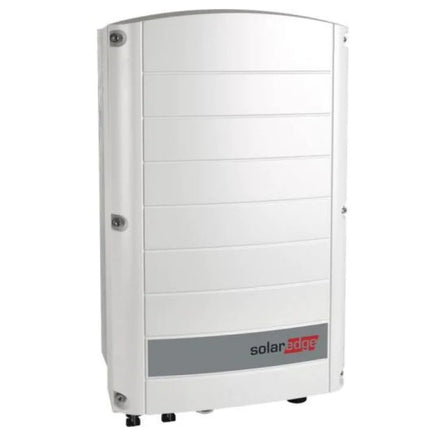

Solar Edge 10000 3phase inverter with Set APP function (no display)
THIS INVERTER HAS NO TRACKERS AND REQUIRES POWER OPTIMISERS TO FUNCTION.
The SolarEdge inverters combine a sophisticated, digital control technology and a one stage, efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.
The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.
UK only: This inverter has been tested and certified according to G98 or G99, but only with the most recent Firmware version. Please update the inverter firmware during SetAPP phone app commissioning process as per the per Installation Manual.
Please note: This inverter does not have a display. It is a new Comms Board version and set up and commissioning need to be done using Solar Edge SetAPP mobile application.
Supplier Part No: SE10K-RW0TEBEN4
Weight: 16.4 kg
Rated Power: 10,000 W
Min PPT Voltage: 750 V
Max PPT Voltage: 900 V
DC Startup Voltage: 0 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 900 V
Max DC Power: 13,000 W
Max AC Power (5 Minutes): 10,000 W
Surge AC Power (1 Second): 10,000 W
Max DC Current: 16.5 A
Max DC Inputs: 2
Has DC Fuses: 0
Included Connectors: 4
Euro Efficiency: 97.6 %
MPPT Quantity : 0
Has Integrated DC Switch: Yes
Warranty: 12 years
