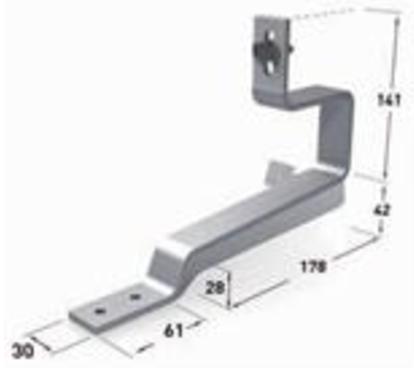

Technical Data Applicational Data Material Dimensions Weight Compatible Components Space for adjustment vertical: 24,5 mm Max. load: pressure 420 N, tension 270 N, shear 420 N Roof hook is pre-assembled Frictional connection due to serration Stainless steel 265 x 30 x 183 mm 0,763 kg 400081, 400011, 400094, 430009, 490018, 900012, 900138, 900145, 900163 1 x Roof hook for plain tiles Standard; 1 x Hammerhead bolt M8 x 25; 1 x Hexagon Nut w. serration DIN6923 - M8 A2-70;
Keywords: Roof Anchor- Tile & Slate, Roof Anchor- Tile & Slate, Roof Anchor- Tile & Slate, Roof Anchor- Tile & Slate, REN420153, Renusol, PV Mounting, Roof Anchor- Tile & Slate
- Supplier Part No: 420153
- Weight: 0.665 kg
