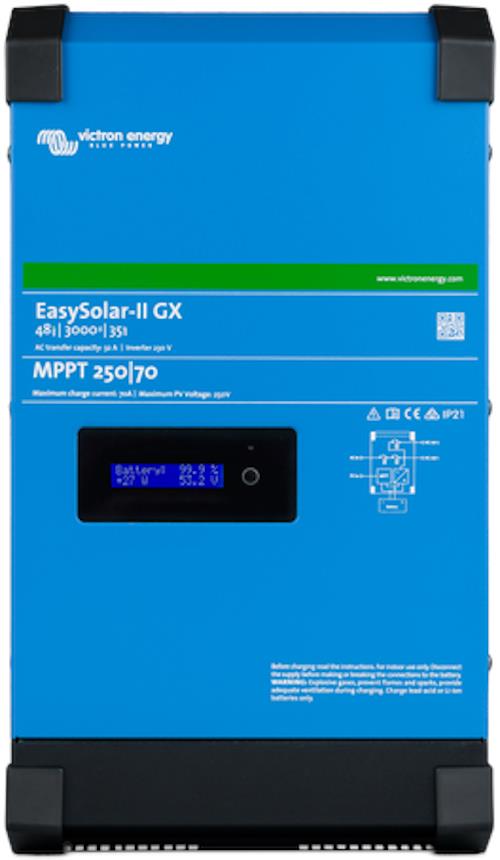

The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Features
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16 character display
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and wifi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (e.g. VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
- A USB port
- A Ethernet port
- A VE.Direct port The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
| Brand |
Victron Energy
|
| Manufacturer Part Number |
PMP482307010
|
| Voltage |
48
|
| Transfer Switch (A) |
32
|
| Continuous Output Power at 25°C |
3000VA/2400W
|
| Peak Power (W) |
5500
|
| Battery Temperature Sensor |
Yes
|
| Programmable Relay |
Yes
|
| Remote on-off |
Yes
|
| Ingress Protection |
IP21
|
| Battery-Connection |
M8 Bolts
|
| Dimensions (Including Terminals) |
H506 x W275 x D237 mm
|
| Weight (kg) |
26
|
| Country of Manufacture |
India
|
| Warranty |
5 Years
|
