The EV Charging Station NS has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode.
The device is technically identical to the EV Charging Station, but with a new, modern design available in 3 colours and without the built-in LCD screen. Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN.
The charger can be fully integrated with and remotely controlled via a Victron Energy GX Device and VRM
Not only does this EV Charging Station NS fully integrate with a Victron Energy GX device and VRM, if you have solar (within the Victron ecosystem), it can also be set up to allow excess energy from the sun to directly charge your vehicle. Manual and scheduled modes offer even more flexibility to respond to the needs of the EV depending on the system.

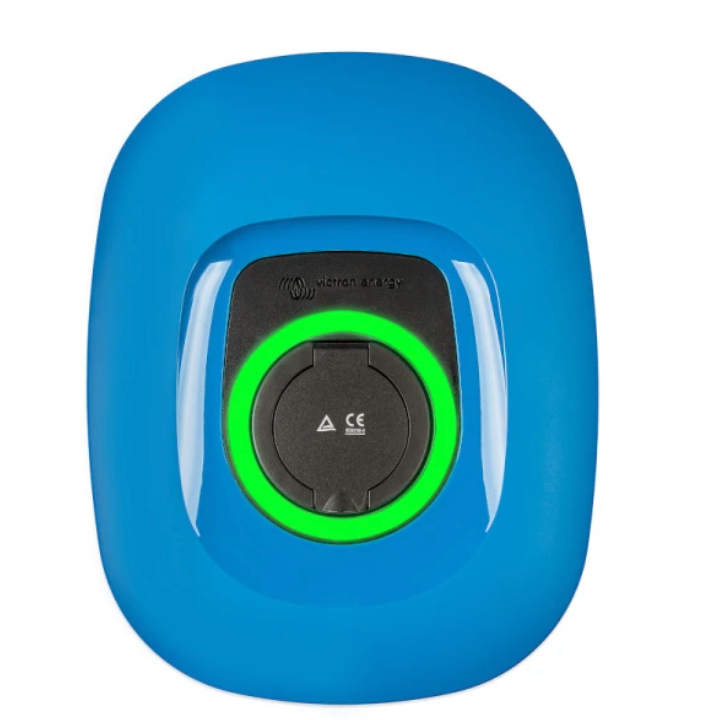

It has a fully programmable RGB light ring around the charging port that displays different light effects depending on the current status (disconnected, charging, charged, etc.) to quickly determine the device status.
Features
WiFi Communication
WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point or Station mode for both, the initial setup and monitoring.
Easy operation and control via Bluetooth and the VictronConnect App
Get full control and overview of all operating parameters and session statistics at a glance.
Light Ring for fast viewing the device state
Fully programmable RGB Light Ring around the charging port to quickly determine the device state. It can be programmed from the integrated web interface to display different light effects based on the current state (disconnected, charging, charged etc.).
Three working modes available:
1. Manual Mode to configure output current
Manual mode allows configurable output current between 6-32 A. The charging power can be regulated in different ways: by using the web interface, from a GX device and VRM and via VictronConnect. It allows to manually start or stop the charging process when a vehicle is connected to the charging station.
2. Automatic Mode to ensure maximum PV system efficiency
Detects when excess power is available and uses only that power to charge the vehicle.
3. Scheduled Mode to charge the EV at certain time intervals
A fully programmable scheduler allows charging at different time intervals, for example at certain times during the night when grid energy is cheaper.
Integration with GX devices and VRM
Control and monitor the EV Charging Station NS from a GX device touch display and the Remote Console and the VRM Portal. The VRM Portal also offers real time and custom reports for configurable time periods.
Click here for data sheet
