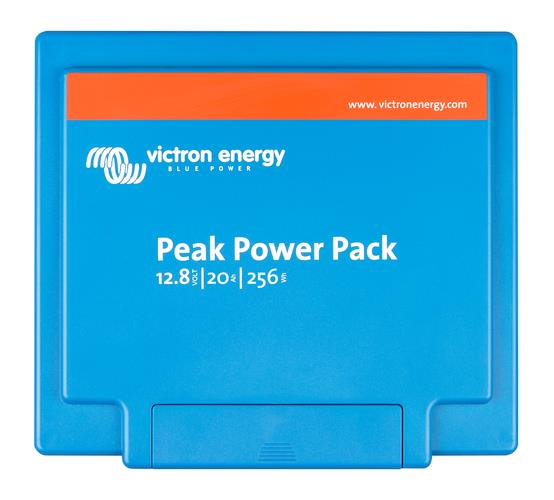

A lithium-ion battery pack with intrinsically safe LiFePO4 cells, a built-in charger, and suitable for high discharge currents.
Nominal voltage: 12.8V
Battery capacity: 8Ah to 40Ah (not suitable for parallel or series connection)
Features
Lightweight and easy to install
- Ideal for mobile applications.
Effective protection against improper use
- Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Storage mode
- Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.
Remote control with status indicator
- Push button (supplied) with a dual-colour LED status indicator:
- Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED.
- Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
- Hold down for 5 seconds: storage mode, blue LED flashes 10 times.
- Battery is charged via input 1:slow flashing blue LED.
- Battery fully charged: blue LED.
- Overload or overheating: flashing red LED.
VE.Direct port: can be connected to a PC or smartphone
(‘VE.Direct to USB’ or ‘VE.Direct Bluetooth Smart dongle’ required)
– Operation:
- Output 1: on / 30-minute timer / off
- Output 2: on/off
- Input 1: on/off
– Monitoring:
- Battery voltage
- Temperature and alarms
