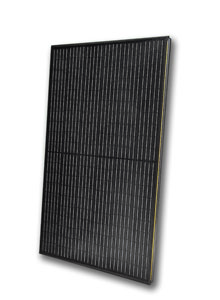

Viridian Clearline High Performance Monocrystalline All Black 405W

High stock levels available on all panels, please contact us via live chat for up-to-date stock before purchase, as stock levels are subject to change. Alternatively, you can email or call us.

Part No: VIR-PV16-405-M10 Panels - Monocrystallines

• Rating: 405W
• Efficiency: 20.7%
• Width: 1,134mm
• Height: 1,722mm

• Simple roof integration with clean,low-profile aesthetic for new build and retrofit
• Rapid installation times of less than 45 min/kWp easily achieved
• Compatible with the widest range of slate and tile including special fixings for different batten thickness
• Fitted during the normal roofing programme, enabling clarity of responsibility and safe working practices
• Achieves highest fire rating and wind resistance without modifications to the roof

Supplier Part No: PV16-405-M10

Weight: 25 kg

Rated Power: 405 W

Length: 1,722 mm

Width: 1,134 mm

Depth: 70 mm

VMPP: 31.02 V

IMPP: 13.06 A

Isc: 13.62 A

Voc: 37.05 V

Temp. Coefficient (Mpp): -0.35 %

Clamp position on panel: Long and short side

Connector Type: MC4

Efficiency: 20.7 %

Pallet Size: Oversized
