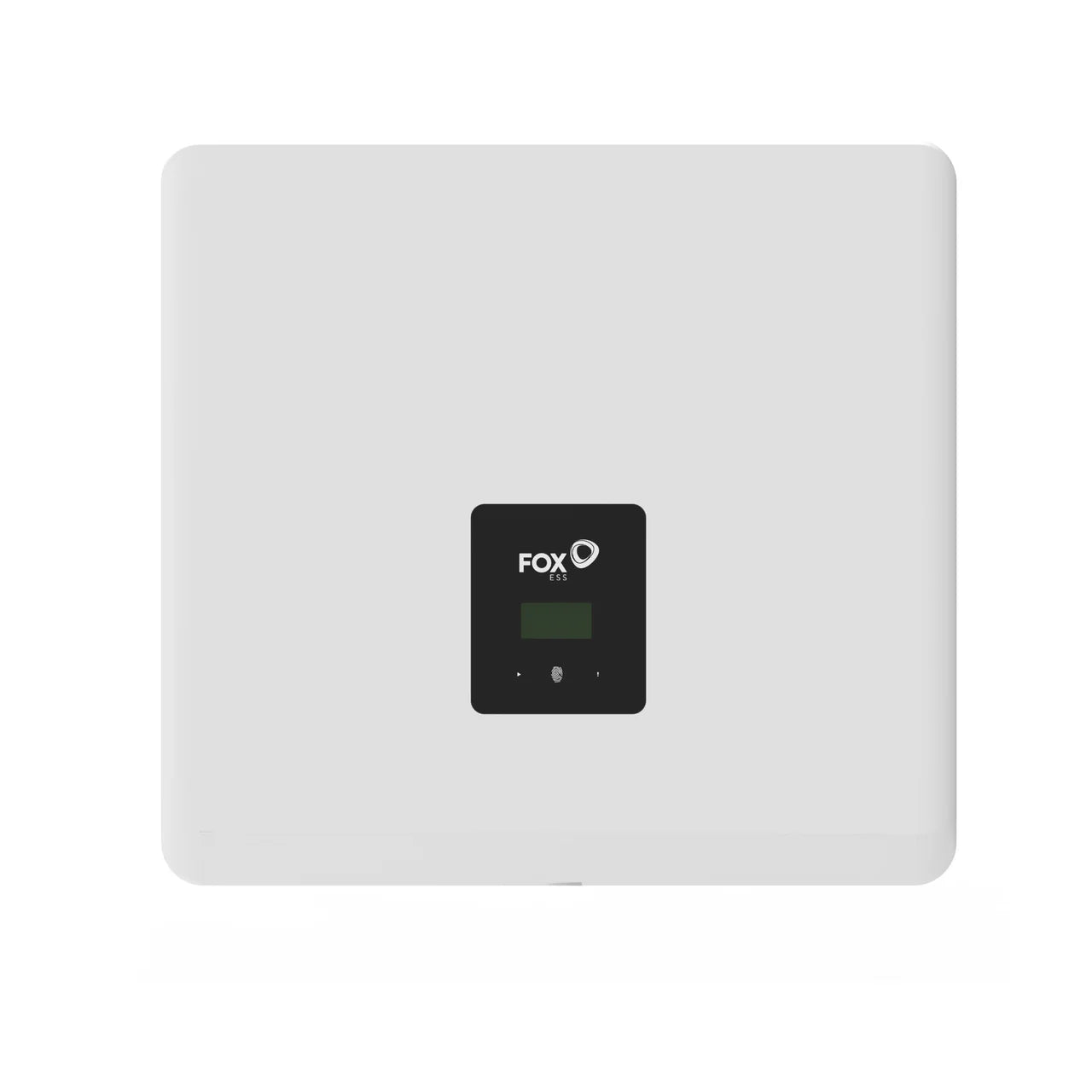

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.
- Easy installation - Plug & Play, built-in fuse protection.
- Maximum yields - Low starting voltage, 97.3% maximum efficiency
- Maximum flexibility - 3 battery types to choose from, True 3-phase backup power
- Monitoring - Monitor remotely via app or web portal.
FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.
3PH Smart Meter included in packaging.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.
- Supplier Part No: H3-10.0 (with EPS)
- Weight: 28 kg
- Rated Power: 10,000 W
- Min PPT Voltage: 160 V
- Max PPT Voltage: 1,000 V
- DC Startup Voltage: 160 V
- DC Shutdown Voltage: 0 V
- Max Input Voltage: 1,000 V
- Max DC Power: 13,000 W
- Max AC Power (5 Minutes): 10,000 W
- Surge AC Power (1 Second): 11,000 W
- Max DC Current: 26 A
- Max DC Inputs: 3
- Has DC Fuses: 1
- Connector: MC4
- Included Connectors: 4
- Euro Efficiency: 98 %
- Transformer: N/A
- MPPT Quantity : 2
- Has Integrated DC Switch: Yes
- Warranty: 5 years
