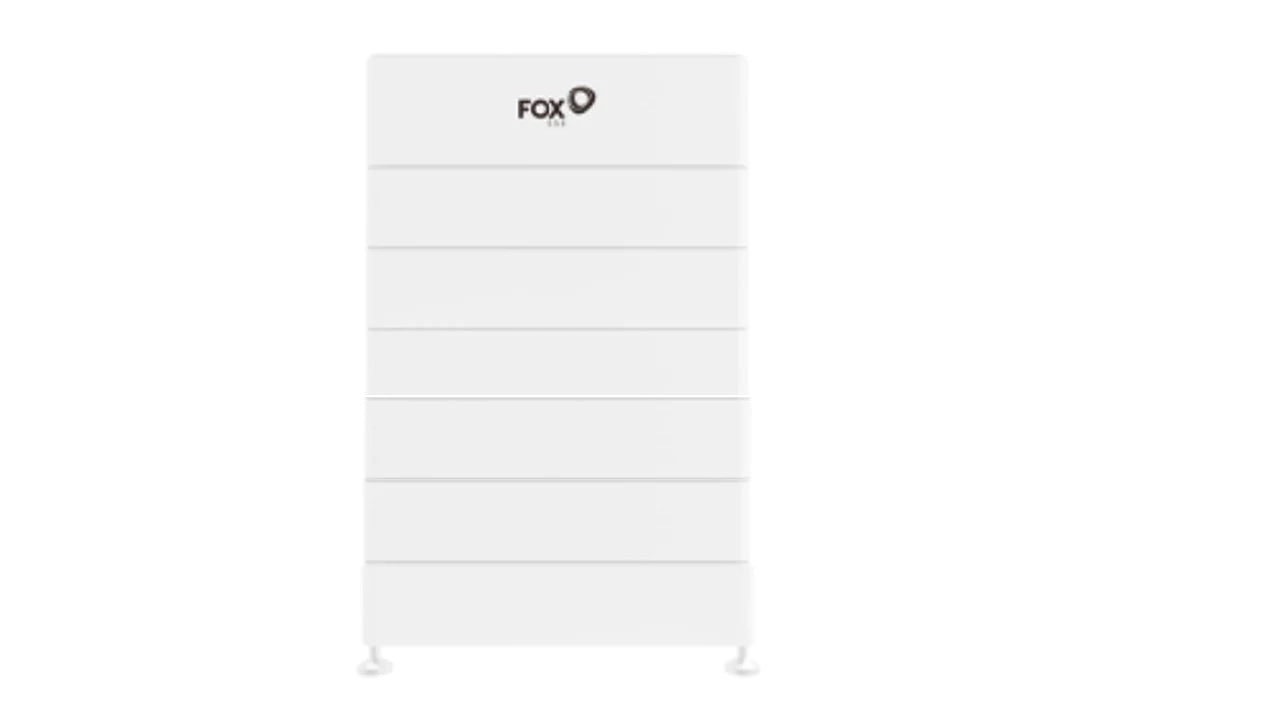

Fox ECS HV ECM2900 Connector Type A, 20.16kWh 1x Master 6x Slave (Full Stack)
Product form
Regular price
£5,067.69
Regular price
Sale price
£5,067.69
Unit price
/
£6,081.23 INC. VAT
In stock
Fast shipping
Collection available More info
Overview
Part No: FE-HV-EC-A-7-2.9-20.3 Storage Systems - Li-ion Battery Pack
Fox ECS 2.9kWh CONNECTOR TYPE A- Full Stack of 7 (20.16kWh Useable Storage) incl. Master
ECM2900-4A2C
- 2.88kWh Capacity
- Scalable to 20.16kWh
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN/RS485 Communication
- High Voltage
The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.
Weight: 229.1kg
Dimensions (Width, Hight, Depth): 570mm x 950mm x 380mm
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)
- Weight: 249.15 kg
- Battery Type: Lithium Ion
- Nominal Energy: 20160 Wh
- Depth of discharge: 90.00 %
- Voltage: 403 V
- Continuous Discharge Rate (Normal Use): 20160 W
- Maximum Discharge Rate (5 Minutes): 20160 W
- Surge Discharge Rate (15 Seconds): 26208 W
- Maximum Charge Rate (5 Minutes): 20160 W
