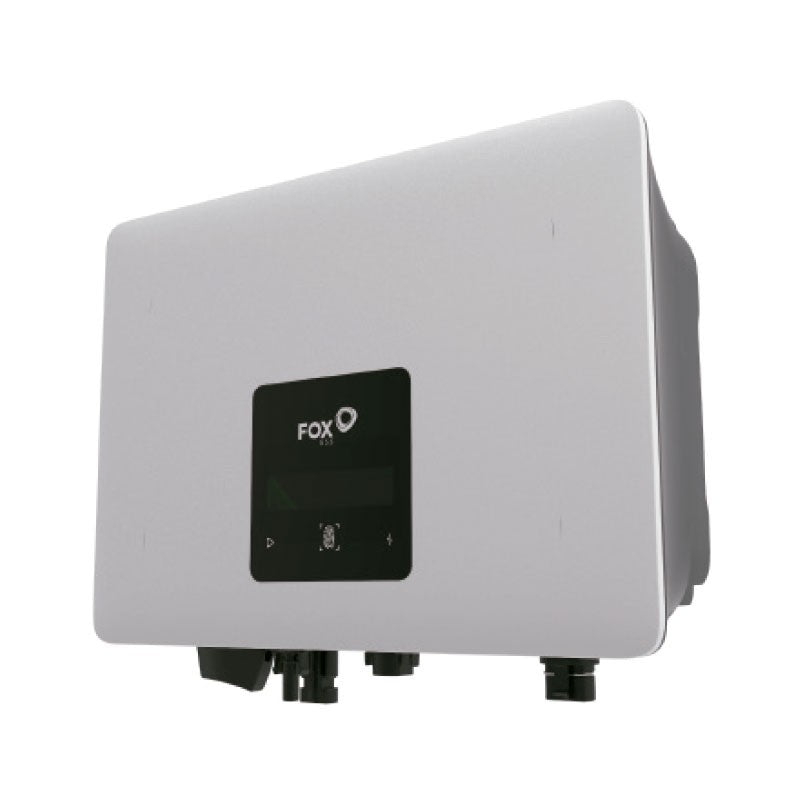

FOX ESS - PV Inverter - S Series - 0.7kW
S700-G2
Single-MPPT S Series range includes 0.7 - 3.0kW models. The S Series is IP65 rated and battery ready for easy upgrade when paired with a Fox ESS charge controller.
- High Performance: Low start-up voltage, wide voltage range, 97.4% maximum efficiency.
- Easy Installation: Flexible configuration, plug and play set-up.
- IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring: Monitor your system remotely via smartphone app or web portal.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.
- Supplier Part No: S700
- Weight: 5.4 kg
- Rated Power: 700 W
- Min PPT Voltage: 60 V
- Max PPT Voltage: 500 V
- DC Startup Voltage: 60 V
- DC Shutdown Voltage: 500 V
- Max Input Voltage: 500 V
- Max DC Power: 1,050 W
- Max AC Power (5 Minutes): 700 W
- Surge AC Power (1 Second): 800 W
- Max DC Current: 14 A
- Max DC Inputs: 1
- Has DC Fuses: 1
- Connector: MC4
- Included Connectors: 1
- Euro Efficiency: 96.5 %
- Transformer: N/A
- MPPT Quantity : 1
- Has Integrated DC Switch: Yes
- Warranty: 5 years
