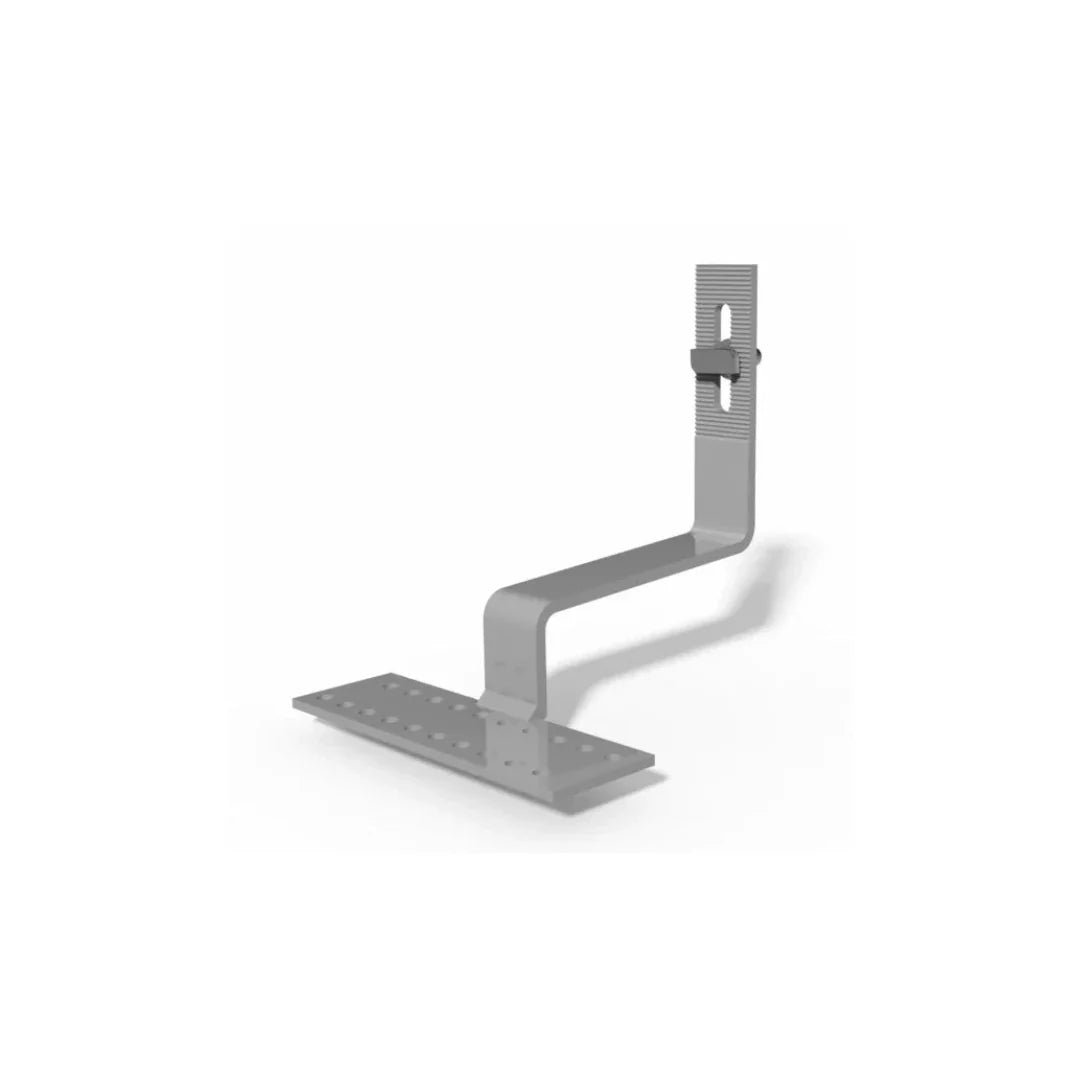

ROOF HOOK ECO BASIC (WITHOUT WOOD SCREW)
Size: 150x180x170 mm
Weight: 0,55 kg
Set pre-assembled
Dimensions base plate: 50 x 150 mm
Material: Galvanised steel
Material thickness: 5,0 / 4,0 mm
Hammerhead Bolt Ø: M8
Applicable with: Wood Roof decking: Tiled roof
No of screws: 2/3 x 6,0
Horizontal adjustment: 60,0 mm
Height adjustment: 37,50 mm
Duration of protection Zinc coating according to EN ISO 14713-1:2017
Zinc coating Duration of protection in Corrosion category C3 (medium contamination or light chloride load): 26-78 years
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Supplier Part No:420165
Weight:0.54 kg
