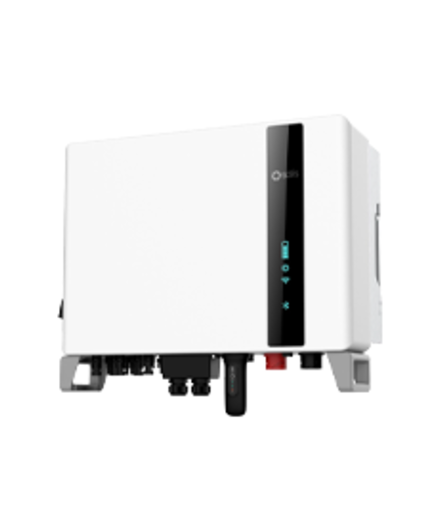

Solis S6 5kW 3PH Hybrid Inverter
- 3 MPPTs, suitable for residential rooftop installations with multiple array orientations
- Supports Unbalanced and Half-Wave Loads on the Grid Port and on the Backup Port
- Compatible with multiple brands of battery models giving customers multiple battery options
- Supports up to 10 units in parallel on Grid and Backup. Suitable for small to medium level commercial energy storage systems
- Supports pure off grid applications with generator communication support
- Multiple working modes to meet different use case scenarios
- Controllable and Upgadeable via the SolisCloud App to avoide site visits
- Up to 16A of MPPT current input to support 182mm/210mm solar panels
- Supports 1.6 DC:AC ratio to connect more PV capacity to the energy storage system
- Up to 50A/10kW max charge/discharge rating with industry highest level 10kW of backup loads support capability
- UPS level switching time (<10ms) supporting critical loads all the time
- High PV charge efficiency to prevent excess PV loss
- Safety protection with integrated AFCI function, which actively detects arc faults in the PV Array
- Natural convection design without external fans
Please note:
- The inverter is supplied including the S2-WL-ST data logger stick (WiFi & LAN) and a 3PH meter from Eastron
Supplier Part No:S6-EH3P5K-H-EUWeight:31.8 kgRated Power:5,000 WMin PPT Voltage:160 VMax PPT Voltage:850 VDC Startup Voltage:160 VDC Shutdown Voltage:160 VMax Input Voltage:1,000 VMax DC Power:8,000 WMax AC Power (5 Minutes):5,500 WSurge AC Power (1 Second):6,000 WMax DC Current:48 AMax DC Inputs:3Has DC Fuses:0Connector:MC4 Included Connectors:4Euro Efficiency:97.5 %Transformer:NoneMPPT Quantity :3Has Integrated DC Switch:YesWarranty:5 years
