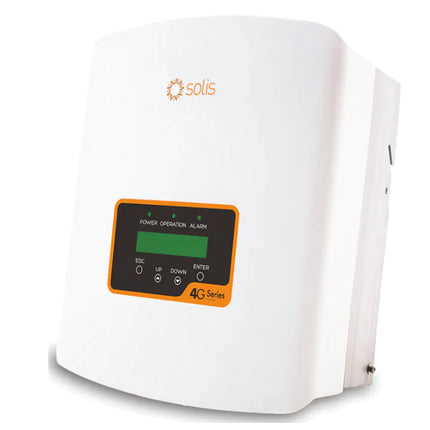

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 2.3kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty
Supplier Part No: S6-GR1P1.5K-M-DC
Weight: 7.4 kg
Rated Power: 1,500 W
Min PPT Voltage: 60 V
Max PPT Voltage: 500 V
DC Startup Voltage: 60 V
DC Shutdown Voltage: 50 V
Max Input Voltage: 600 V
Max DC Power: 2,300 W
Max AC Power (5 Minutes): 1,650 W
Surge AC Power (1 Second): 1,650 W
Max DC Current: 14 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: MC4
Included Connectors: 1
Euro Efficiency: 95.4 %
Transformer: None
MPPT Quantity : 1
Has Integrated DC Switch: Yes
Warranty: 5 years
