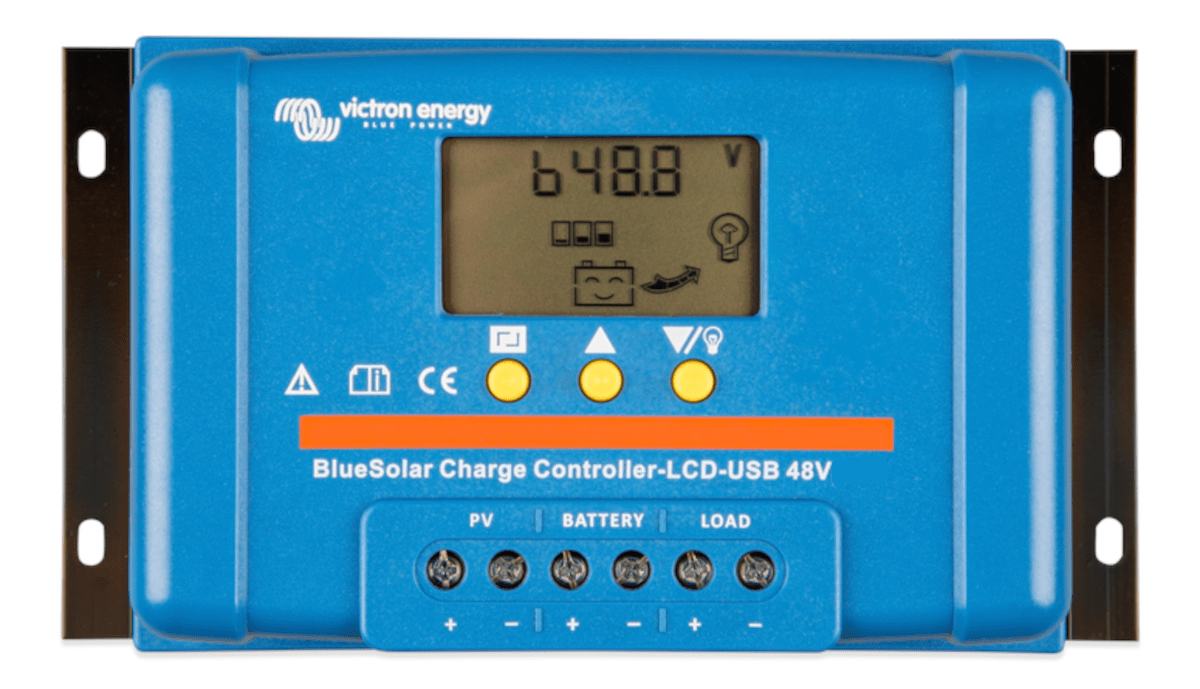

Liquid crystal display
For status monitoring and set-up
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
CLICK HERE FOR SPEC SHEET
| Brand |
Victron Energy
|
| Manufacturer Part Number |
SCC040020050
|
| GTIN |
8719076046240
|
| Battery Voltage |
48V
|
| Rated Charge Current |
20A
|
| Maximum Solar Voltage |
100V
|
| Load Output |
Manual control + low voltage disconnect + timer
|
| Grounding |
Common positive
|
| IP Rating |
IP20
|
| Dimensions |
H101 x W184 x D47mm
|
| Weight |
0.3Kg
|
| Warranty |
5 Years
|
